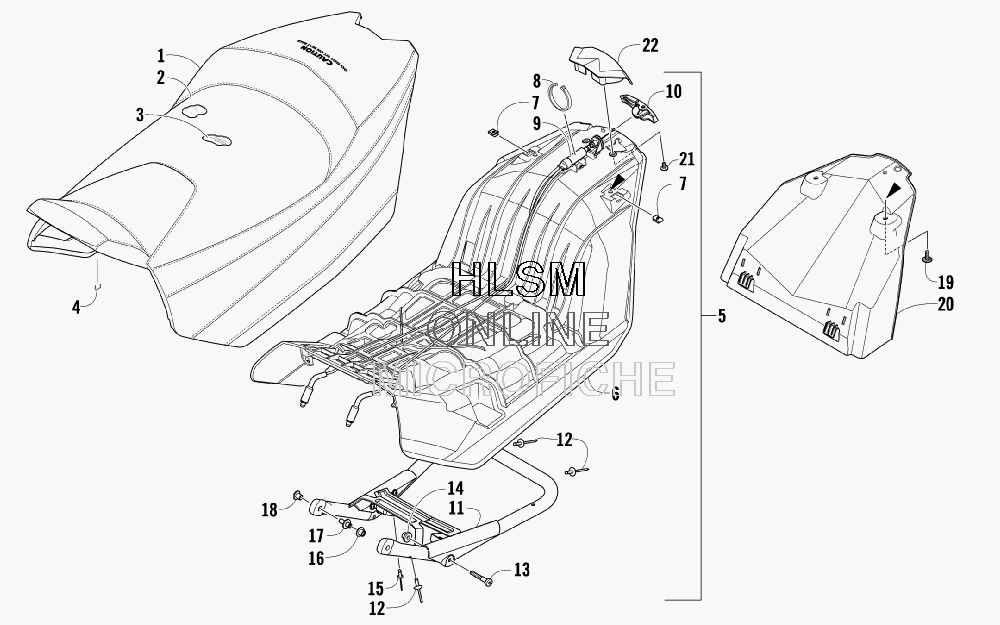

SEAT ASSEMBLY для Arctic Cat Z1 TURBO LXR - 2009 года выпуска

  • №
    Артикул
    Название
  • -
    7800-310 COMPLETE SEAT ASSEMBLY
    COMPLETE SEAT ASSEMBLY
  • 1
    4706-344 COVER, SEAT
    COVER, SEAT
  • 2
    0617-570 FOAM, SEAT
    FOAM, SEAT
  • 3
    0609-869 PAD, SEAT HEATER
    PAD, SEAT HEATER
  • 4
    0624-528 STAPLE
    STAPLE
  • 5
    4706-265 SEAT-BASE - ASSEMBLY (INC. 6-18)
    SEAT-BASE - ASSEMBLY (INC. 6-18)
  • 6
    5606-591 ...SEAT-BASE
    ...SEAT-BASE
  • 7
    0423-060 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 8
    0123-788 ...TIE, CABLE - 8 IN.
    ...TIE, CABLE - 8 IN.
  • 9
    5606-592 ...CABLE, SEAT ADJUSTER
    ...CABLE, SEAT ADJUSTER
  • 10
    4606-380 ...LEVER, SEAT ADJUSTER CABLE
    ...LEVER, SEAT ADJUSTER CABLE
  • 11
    3706-886 ...FRAME, SEAT
    ...FRAME, SEAT
  • 12
    8061-688 ...RIVET
    ...RIVET
  • 13
    4606-338 ...PIN, SLIDE - BOTTOM
    ...PIN, SLIDE - BOTTOM
  • 14
    1623-524 ...WASHER, SLIDE PIN - BOTTOM
    ...WASHER, SLIDE PIN - BOTTOM
  • 15
    1623-130 ...RIVET
    ...RIVET
  • 16
    1623-525 ...WASHER, SLIDE PIN - TOP
    ...WASHER, SLIDE PIN - TOP
  • 17
    4606-339 ...PIN, SLIDE - TOP
    ...PIN, SLIDE - TOP
  • 18
    1623-542 ...NUT, SLIDE PIN
    ...NUT, SLIDE PIN
  • 19
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    4606-225 PANEL, SEAT-BASE
    PANEL, SEAT-BASE
  • 21
    1623-463 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    4606-345 HOUSING, CABLE - SEAT ADJUSTER
    HOUSING, CABLE - SEAT ADJUSTER
