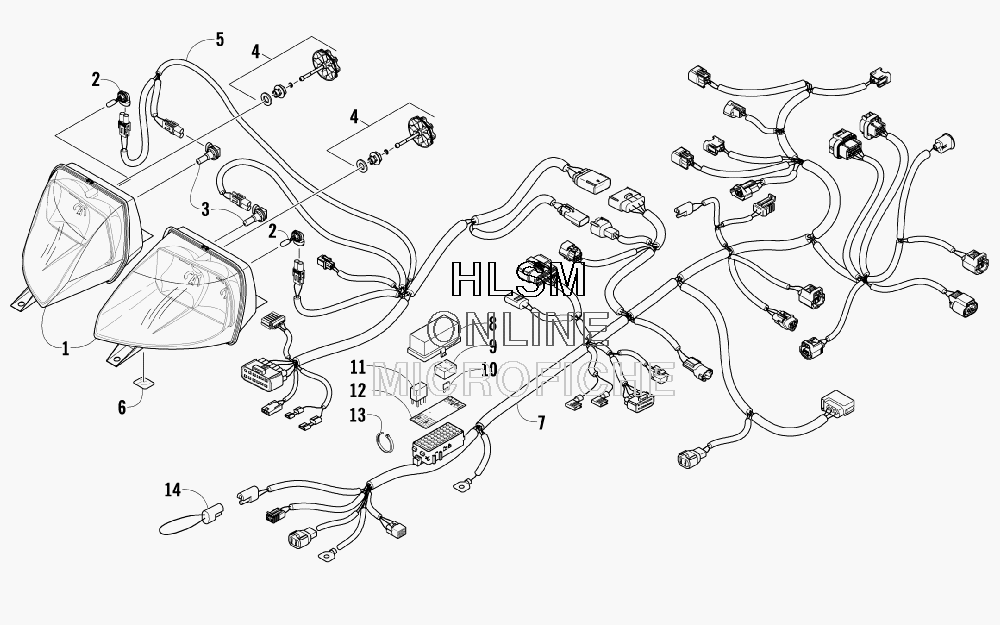

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat Z1 LXR - 2009 года выпуска`
-
№АртикулНазвание
-
10609-808 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
-
10609-809 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
-
20609-783 ...BULB, HEADLIGHT - LOW BEAM...BULB, HEADLIGHT - LOW BEAM
-
30609-782 ...BULB, HEADLIGHT - HIGH BEAM...BULB, HEADLIGHT - HIGH BEAM
-
40609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY...ADJUSTER, HEADLIGHT - ASSEMBLY
-
51686-502 HARNESS, CONSOLEHARNESS, CONSOLE
-
62606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
71686-493 HARNESS, MAIN (INC. 8-12)HARNESS, MAIN (INC. 8-12)
-
80530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
90430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
100430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
100430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
110430-033 ...RELAY...RELAY
-
128611-240 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
130123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
140486-164 TETHER, ACCESSORY CONNECTOR*TETHER, ACCESSORY CONNECTOR*
