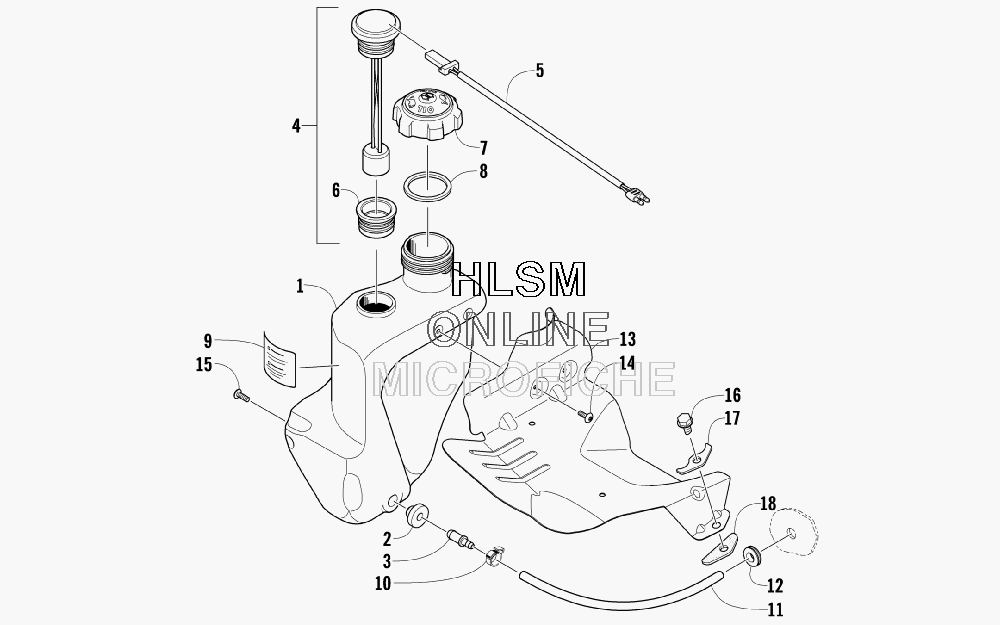

OIL TANK ASSEMBLY для Arctic Cat M8 EFI 153 LE - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-930 TANK, OIL
    TANK, OIL
  • 2
    1670-325 GROMMET
    GROMMET
  • 3
    1670-481 FITTING, OIL TANK
    FITTING, OIL TANK
  • 4
    0609-503 SENSOR, LOW OIL - ASSEMBLY (INC. 5-6)
    SENSOR, LOW OIL - ASSEMBLY (INC. 5-6)
  • 5
    0609-518 ...SWITCH, OIL SENSOR W/HARNESS
    ...SWITCH, OIL SENSOR W/HARNESS
  • 6
    0609-237 ...SEAL, GROMMET - OIL SENSOR
    ...SEAL, GROMMET - OIL SENSOR
  • 7
    1670-365 CAP, OIL TANK (INC. 8)
    CAP, OIL TANK (INC. 8)
  • 8
    0109-733 ...SEAL, CAP - OIL TANK
    ...SEAL, CAP - OIL TANK
  • 9
    4611-532 DECAL, OIL TANK
    DECAL, OIL TANK
  • 10
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-693 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 11
    0610-692 HOSE, OIL - 25 FT
    HOSE, OIL - 25 FT
  • 12
    1623-256 GROMMET
    GROMMET
  • 13
    5606-372 SHIELD, HEAT
    SHIELD, HEAT
  • 14
    1623-705 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    1623-779 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0623-765 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    5606-657 SPACER
    SPACER
  • 18
    0617-598 PAD, HEAT SHIELD
    PAD, HEAT SHIELD
