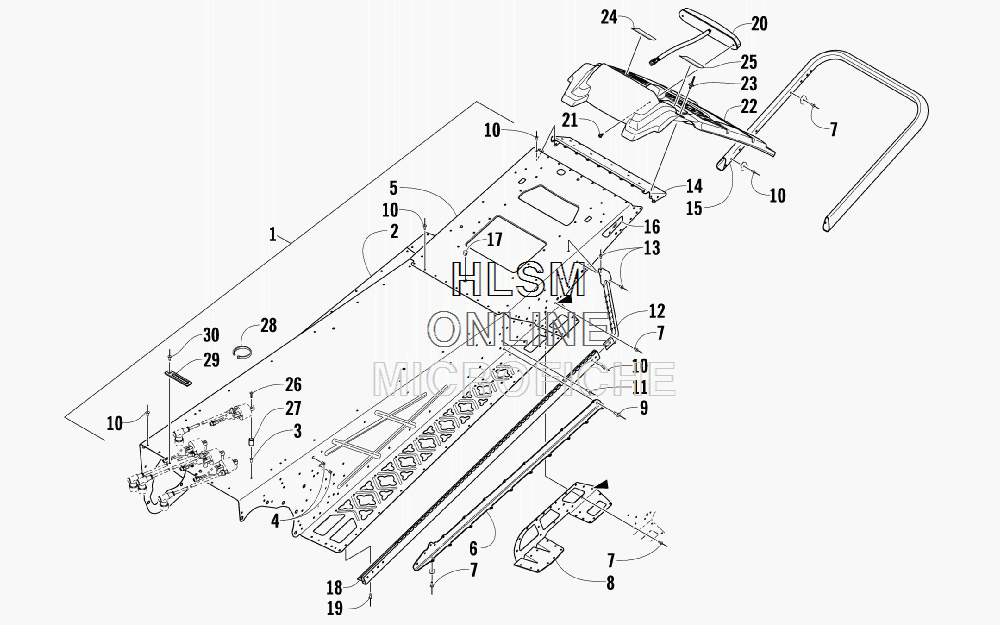

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat CROSSFIRE R 1000 EFI ORANGE [S2009CFLRCUSO] - 2009 года выпуска`
-
№АртикулНазвание
-
*1707-319 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12718-761 TUNNEL ASSEMBLY (INC. 2-11)TUNNEL ASSEMBLY (INC. 2-11)
-
22718-760 ...TUNNEL, FRONT (INC. 3-4)...TUNNEL, FRONT (INC. 3-4)
-
31623-562 ......INSERT......INSERT
-
41623-657 ......INSERT......INSERT
-
55606-498 ...TUNNEL, REAR...TUNNEL, REAR
-
65606-402 ...BRACKET, TUNNEL SUPPORT - RIGHT...BRACKET, TUNNEL SUPPORT - RIGHT
-
65606-403 ...BRACKET, TUNNEL SUPPORT - LEFT...BRACKET, TUNNEL SUPPORT - LEFT
-
78060-686 ...RIVET...RIVET
-
84706-428 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
84706-429 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
98060-688 ...RIVET...RIVET
-
108060-484 ...RIVET...RIVET
-
118060-682 ...RIVET...RIVET
-
125606-594 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
125606-595 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
138060-488 RIVETRIVET
-
145606-253 END CAP, TUNNELEND CAP, TUNNEL
-
155606-475 BUMPER, REARBUMPER, REAR
-
168611-520 DECAL, REFLECTOR - RED - RIGHTDECAL, REFLECTOR - RED - RIGHT
-
168611-521 DECAL, REFLECTOR - RED - LEFTDECAL, REFLECTOR - RED - LEFT
-
170623-562 PLUG, HOLEPLUG, HOLE
-
185606-490 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
185606-491 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
198060-482 RIVETRIVET
-
200609-855 TAILLIGHT, LEDTAILLIGHT, LED
-
210623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
225606-525 SNOWFLAPSNOWFLAP
-
238061-710 RIVETRIVET
-
245611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
255611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
261623-671 SCREW, MACHINESCREW, MACHINE
-
271623-045 SPACERSPACER
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
293002-964 CLAMP, WIRECLAMP, WIRE
-
308060-486 RIVETRIVET
