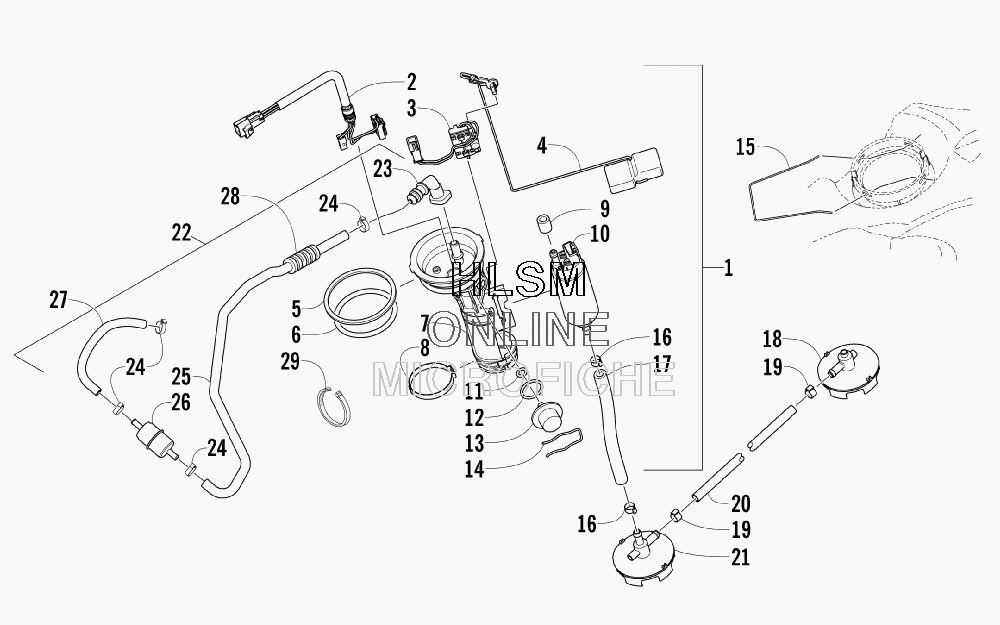

FUEL PUMP ASSEMBLY для Arctic Cat AC TZ1 LXR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-797 PUMP, FUEL (INC. 2-15)
    PUMP, FUEL (INC. 2-15)
  • 3
    1670-962 ...WIRE ASSEMBLY
    ...WIRE ASSEMBLY
  • 4
    1670-966 ...ARM, FLOAT - ASSEMBLY
    ...ARM, FLOAT - ASSEMBLY
  • 5
    0470-613 ...SEAL, FLANGE
    ...SEAL, FLANGE
  • 6
    1670-917 ...O-RING
    ...O-RING
  • 7
    1670-905 ...PUMP, FUEL-(WX-6731) F3 2 STRK
    ...PUMP, FUEL-(WX-6731) F3 2 STRK
  • 8
    1670-910 ...CLAMP
    ...CLAMP
  • 9
    1670-961 ...SEAL, PUMP OUTLET
    ...SEAL, PUMP OUTLET
  • 10
    1670-531 ...PUMP, FUEL
    ...PUMP, FUEL
  • 11
    1670-532 ...O-RING
    ...O-RING
  • 12
    1670-533 ...O-RING
    ...O-RING
  • 13
    1670-536 ...REGULATOR, PRESSURE
    ...REGULATOR, PRESSURE
  • 14
    1670-908 ...RETAINER, PRESSURE REGULATOR
    ...RETAINER, PRESSURE REGULATOR
  • 15
    1670-911 ...CLIP, RETAINER
    ...CLIP, RETAINER
  • 16
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    0610-075 HOSE, GASLINE
    HOSE, GASLINE
  • 18
    1670-618 PICKUP, FUEL
    PICKUP, FUEL
  • 19
    0610-704 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    2670-006 HOSE, GASLINE
    HOSE, GASLINE
  • 21
    1670-701 PICKUP, FUEL
    PICKUP, FUEL
  • 22
    1670-896 FILTER, FUEL - ASSEMBLY (INC. 23, TWO NO. 24, AND 25-26)
    FILTER, FUEL - ASSEMBLY (INC. 23, TWO NO. 24, AND 25-26)
  • 23
    1670-878 ...FITTING, QUICK-CONNECT
    ...FITTING, QUICK-CONNECT
  • 24
    0610-419 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 25
    0610-707 ...HOSE, GASLINE
    ...HOSE, GASLINE
  • 26
    1670-825 ...FILTER, FUEL
    ...FILTER, FUEL
  • 27
    0610-706 HOSE, GASLINE
    HOSE, GASLINE
  • 28
    0716-507 CONDUIT, HIGH TEMPERATURE - 26 IN.
    CONDUIT, HIGH TEMPERATURE - 26 IN.
  • 29
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
