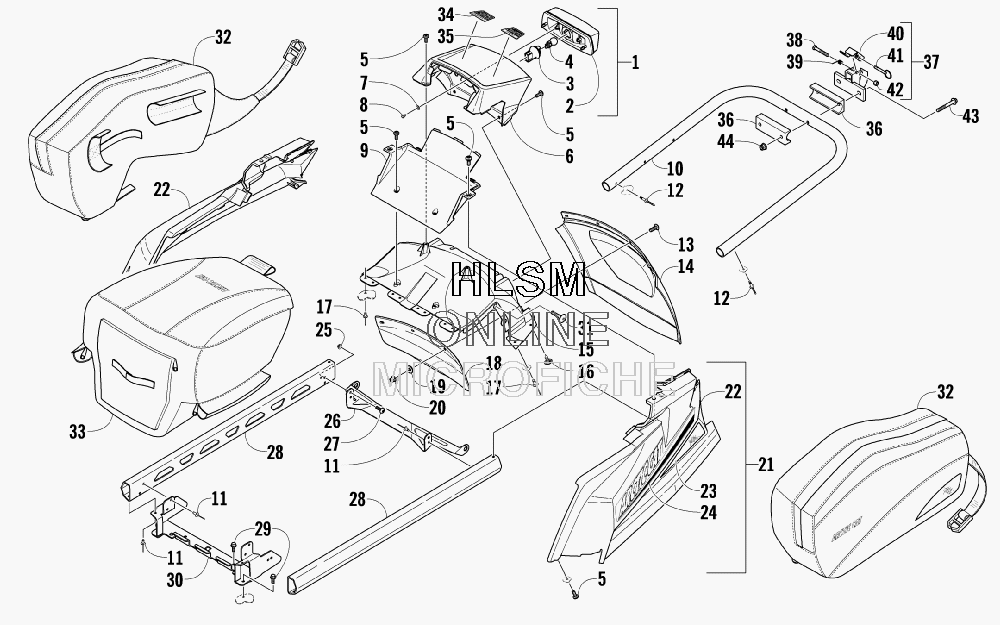

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat AC TZ1 LXR INTERNATIONAL - 2009 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)TAILLIGHT - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
51623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
65606-063 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
78050-127 WASHERWASHER
-
80623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
95606-065 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
101707-289 BUMPER, REAR - PLATINUMBUMPER, REAR - PLATINUM
-
118060-686 RIVETRIVET
-
121623-241 RIVETRIVET
-
131623-782 SCREW, MACHINESCREW, MACHINE
-
145606-254 SNOWFLAPSNOWFLAP
-
155606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
160623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178061-506 RIVETRIVET
-
183606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
190623-184 WASHERWASHER
-
208427-602 NUT, LOCKNUT, LOCK
-
212718-626 FENDER, REAR - RIGHT W/DECAL (INC. 22-24)FENDER, REAR - RIGHT W/DECAL (INC. 22-24)
-
212718-627 FENDER, REAR - LEFT W/DECAL (INC. 22-24)FENDER, REAR - LEFT W/DECAL (INC. 22-24)
-
222718-488 ...FENDER, REAR - RIGHT (INC. 23)...FENDER, REAR - RIGHT (INC. 23)
-
222718-489 ...FENDER, REAR - LEFT (INC. 23)...FENDER, REAR - LEFT (INC. 23)
-
238611-304 ......REFLECTOR......REFLECTOR
-
238611-305 ......REFLECTOR......REFLECTOR
-
248611-396 ...DECAL, REAR FENDER...DECAL, REAR FENDER
-
258427-502 NUT, LOCKNUT, LOCK
-
263706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
278476-516 SCREW, MACHINESCREW, MACHINE
-
283706-857 RAIL, RACKRAIL, RACK
-
298408-620 SCREW, MACH-TSTRH M6X1.0X20 Z & YSCREW, MACH-TSTRH M6X1.0X20 Z & Y
-
304706-017 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
311623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
325606-172 SADDLEBAG, SIDE - RIGHTSADDLEBAG, SIDE - RIGHT
-
325606-173 SADDLEBAG, SIDE - LEFTSADDLEBAG, SIDE - LEFT
-
335606-171 SADDLEBAG, REARSADDLEBAG, REAR
-
347611-432 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
357611-433 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
363706-896 BRACKET, HITCHBRACKET, HITCH
-
370706-727 HITCH, PINTLE - ASSEMBLY (INC. 38-42)HITCH, PINTLE - ASSEMBLY (INC. 38-42)
-
388002-046 ...SCREW, CAP...SCREW, CAP
-
390623-335 ...SPRING, HITCH...SPRING, HITCH
-
402706-229 ...LATCH, HITCH...LATCH, HITCH
-
410623-213 ...PIN, HITCH...PIN, HITCH
-
428040-366 ...NUT, LOCK...NUT, LOCK
-
438408-860 SCREW, CAPSCREW, CAP
-
448427-802 NUT, LOCKNUT, LOCK
-
*4706-146 KIT, TOOL (NOT ILLUSTRATED)KIT, TOOL (NOT ILLUSTRATED)
