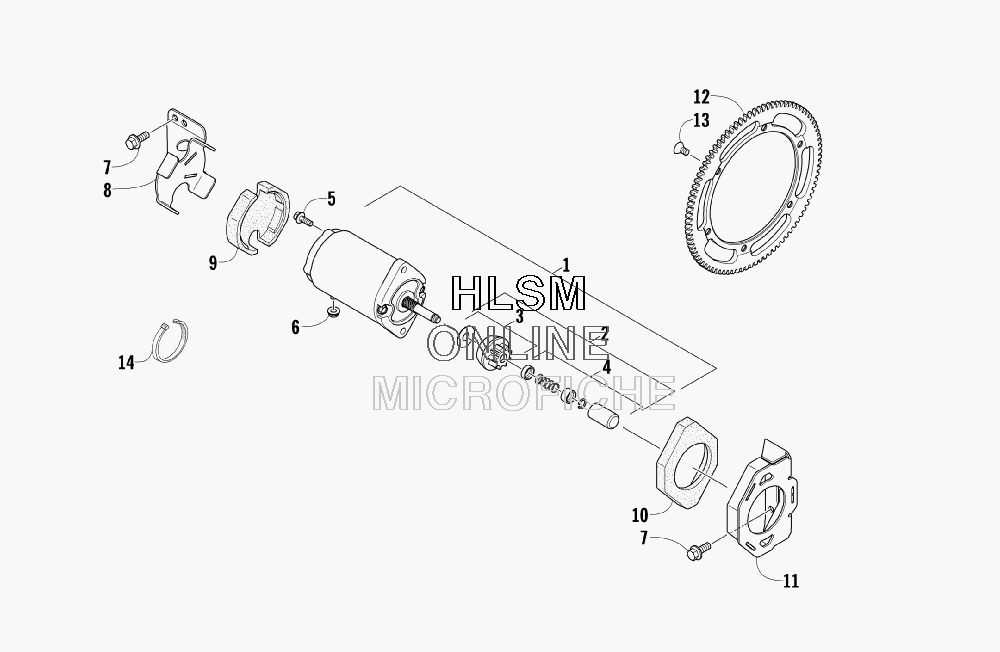

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat AC T570 - 2009 года выпуска`
-
№АртикулНазвание
-
10745-351 MOTOR, STARTER (INC. 2-4)MOTOR, STARTER (INC. 2-4)
-
20745-224 ...PINION DRIVE ASSEMBLY (INC. 3-4)...PINION DRIVE ASSEMBLY (INC. 3-4)
-
30637-265 ......KIT, PINION DRIVE......KIT, PINION DRIVE
-
40645-186 ......KIT, PINION STOPPER......KIT, PINION STOPPER
-
50623-892 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
68427-602 NUT, LOCKNUT, LOCK
-
71623-553 SCREW, CAPSCREW, CAP
-
80745-334 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
90645-568 ISOLATOR, STARTER MOUNTING - RIGHTISOLATOR, STARTER MOUNTING - RIGHT
-
100645-569 ISOLATOR, STARTER MOUNTING - LEFTISOLATOR, STARTER MOUNTING - LEFT
-
110745-335 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
120645-367 GEAR, RINGGEAR, RING
-
131623-128 SCREW, MACHINESCREW, MACHINE
-
140623-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
