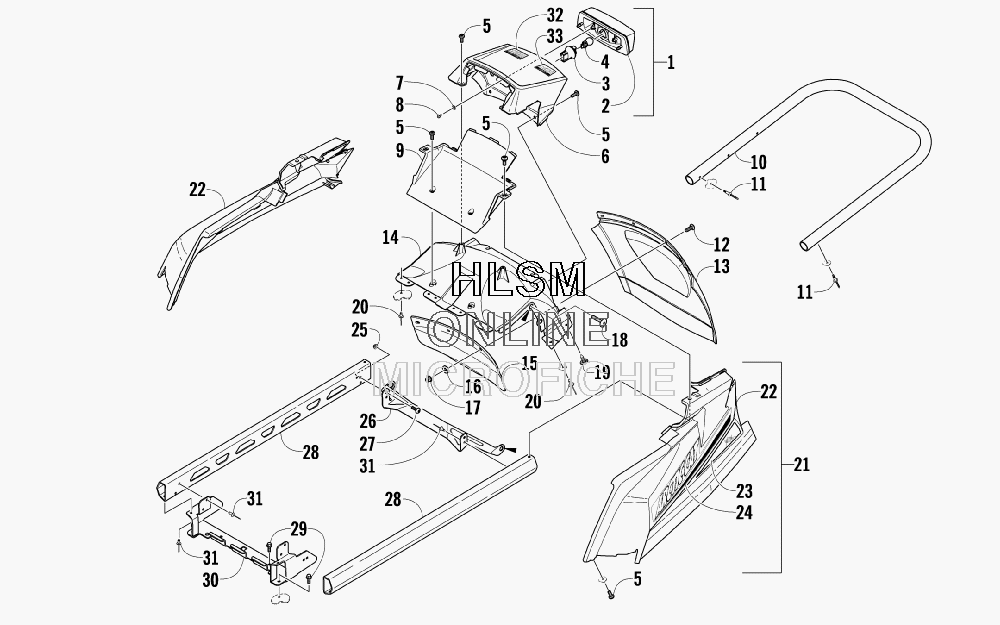

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat AC T500 - 2009 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)TAILLIGHT - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
51623-661 SCREW, MACHINESCREW, MACHINE
-
65606-063 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
78050-127 WASHERWASHER
-
80623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
95606-065 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
101707-129 BUMPER, REARBUMPER, REAR
-
111623-241 RIVETRIVET
-
121623-782 SCREW, MACHINESCREW, MACHINE
-
135606-254 SNOWFLAPSNOWFLAP
-
145606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
153606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
160623-184 WASHERWASHER
-
178427-602 NUT, LOCKNUT, LOCK
-
181623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
208061-506 RIVETRIVET
-
212718-606 FENDER, REAR - RIGHT W/DECAL (INC. 22-24)FENDER, REAR - RIGHT W/DECAL (INC. 22-24)
-
212718-607 FENDER, REAR - LEFT W/DECAL (INC. 22-24)FENDER, REAR - LEFT W/DECAL (INC. 22-24)
-
222718-488 ...FENDER, REAR - RIGHT (INC. 23)...FENDER, REAR - RIGHT (INC. 23)
-
222718-489 ...FENDER, REAR - LEFT (INC. 23)...FENDER, REAR - LEFT (INC. 23)
-
238611-304 ......REFLECTOR......REFLECTOR
-
238611-305 ......REFLECTOR......REFLECTOR
-
248611-388 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
248611-389 ...DECAL, REAR FENDER - LEFT...DECAL, REAR FENDER - LEFT
-
258427-502 NUT, LOCKNUT, LOCK
-
263706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
278476-516 SCREW, MACHINESCREW, MACHINE
-
283706-857 RAIL, RACKRAIL, RACK
-
298408-620 SCREW, MACH-TSTRH M6X1.0X20 Z & YSCREW, MACH-TSTRH M6X1.0X20 Z & Y
-
304706-017 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
318060-686 RIVETRIVET
-
327611-432 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
337611-433 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
