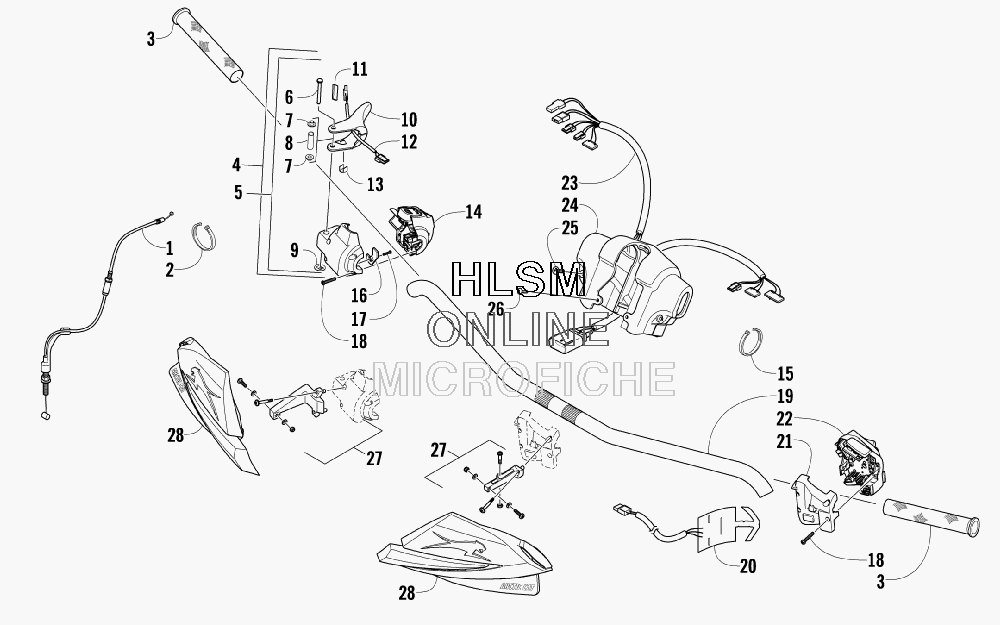

HANDLEBAR AND CONTROLS (INTERNATIONAL) для Arctic Cat AC F6 EFI SNO PRO INTERNATIONAL - 2009 года выпуска`
-
№АртикулНазвание
-
10687-213 CABLE, THROTTLECABLE, THROTTLE
-
20123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
34606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40609-824 CONTROL, THROTTLE - REAR (INC. 5-10)CONTROL, THROTTLE - REAR (INC. 5-10)
-
50609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
-
90123-766 ......NUT, PUSH......NUT, PUSH
-
100609-797 ...LEVER, THROTTLE...LEVER, THROTTLE
-
110617-248 PAD, INSULATORPAD, INSULATOR
-
120609-775 ELEMENT, THUMB WARMERELEMENT, THUMB WARMER
-
130609-595 CLIP, RETAININGCLIP, RETAINING
-
140609-864 CONTROL, THROTTLE - FRONTCONTROL, THROTTLE - FRONT
-
150123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
160609-792 COVER, CONNECTORCOVER, CONNECTOR
-
170609-793 SCREW, MACHINESCREW, MACHINE
-
180609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191705-092 HANDLEBARHANDLEBAR
-
200609-828 ELEMENT, HAND WARMER - RIGHTELEMENT, HAND WARMER - RIGHT
-
200609-829 ELEMENT, HAND WARMER - LEFTELEMENT, HAND WARMER - LEFT
-
210609-811 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
220609-805 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
231686-458 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
243606-693 PAD, HANDLEBAR - ADJUSTABLEPAD, HANDLEBAR - ADJUSTABLE
-
250623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
261623-673 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
274639-805 HANDGUARD, MOUNT - KITHANDGUARD, MOUNT - KIT
-
284639-807 HANDGUARD - KIT - GREENHANDGUARD - KIT - GREEN
