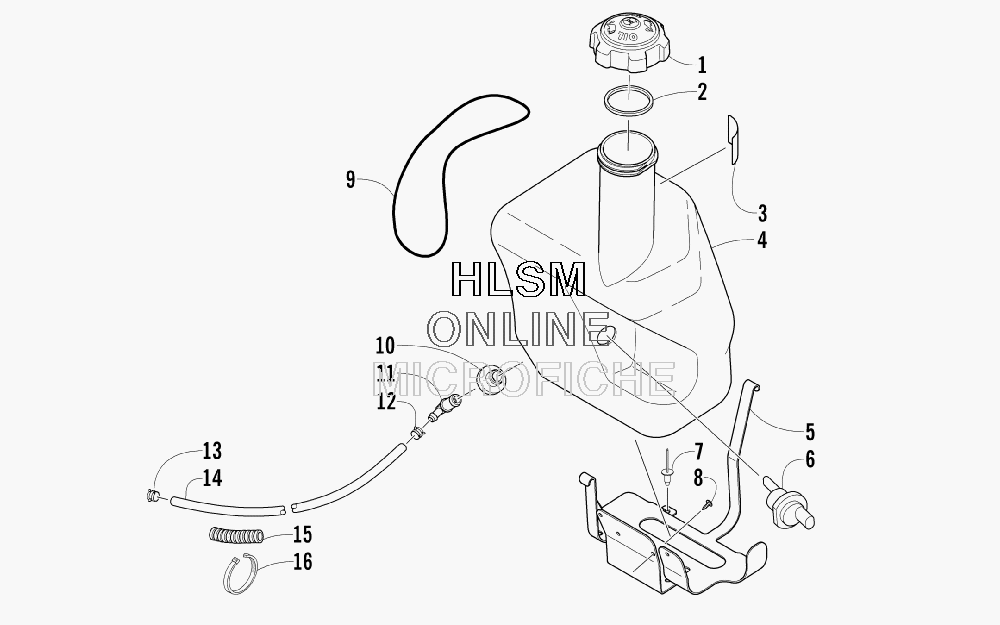

OIL TANK ASSEMBLY для Arctic Cat AC F570 INTERNATIONAL - 2009 года выпуска`
-
№АртикулНазвание
-
11670-365 CAP, OIL TANK (INC. 2)CAP, OIL TANK (INC. 2)
-
20109-733 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
31611-564 DECAL, OIL TANKDECAL, OIL TANK
-
41670-922 TANK, OILTANK, OIL
-
53706-798 BRACKET, MOUNTING - OIL TANKBRACKET, MOUNTING - OIL TANK
-
60609-773 SENSOR, LOW OILSENSOR, LOW OIL
-
78060-686 RIVETRIVET
-
81623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
91623-693 O-RINGO-RING
-
101670-325 GROMMETGROMMET
-
111670-494 FITTING, OIL TANKFITTING, OIL TANK
-
121623-042 CLAMP,SNAP-10 MMCLAMP,SNAP-10 MM
-
131623-351 CLAMP, HOSECLAMP, HOSE
-
146101-001 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
146101-009 HOSE, OIL - 25 FTHOSE, OIL - 25 FT
-
150716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
160123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
