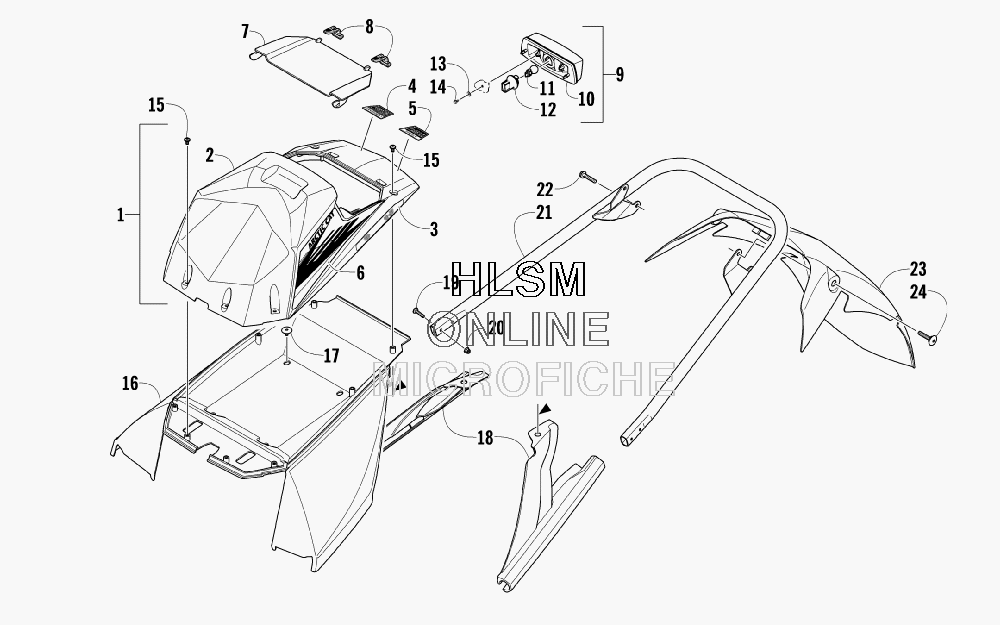

REAR BUMPER- STORAGE BOX- AND TAILLIGHT ASSEMBLY для Arctic Cat AC F5 EFI - 2009 года выпуска`
-
№АртикулНазвание
-
12718-572 BOX, STORAGE W/DECALS (INC. 2-6)BOX, STORAGE W/DECALS (INC. 2-6)
-
22718-470 ...BOX, STORAGE W/O DECALS (INC. 3-5)...BOX, STORAGE W/O DECALS (INC. 3-5)
-
38611-182 ......DECAL, REFLECTOR - RIGHT......DECAL, REFLECTOR - RIGHT
-
38611-183 ......DECAL, REFLECTOR - LEFT......DECAL, REFLECTOR - LEFT
-
47611-432 ......DECAL, WARNING - TOWING (FRENCH)......DECAL, WARNING - TOWING (FRENCH)
-
57611-433 ......DECAL, WARNING - TOWING (ENGLISH)......DECAL, WARNING - TOWING (ENGLISH)
-
68611-404 ...DECAL, STORAGE BOX - RIGHT...DECAL, STORAGE BOX - RIGHT
-
68611-405 ...DECAL, STORAGE BOX - LEFT...DECAL, STORAGE BOX - LEFT
-
74606-732 LID, STORAGE BOX - BLACKLID, STORAGE BOX - BLACK
-
84606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
90509-022 TAILLIGHT W/SOCKET ASSEMBLY (INC. 10-12)TAILLIGHT W/SOCKET ASSEMBLY (INC. 10-12)
-
100509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
110409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
120409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
138050-127 WASHERWASHER
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
164706-284 FENDER, REAR - TUNNELFENDER, REAR - TUNNEL
-
170423-101 SCREW, BODYSCREW, BODY
-
184606-728 PANEL, FILLER - SNOWFLAP - RIGHTPANEL, FILLER - SNOWFLAP - RIGHT
-
184606-729 PANEL, FILLER - SNOWFLAP - LEFTPANEL, FILLER - SNOWFLAP - LEFT
-
198476-630 SCREW, MACHINESCREW, MACHINE
-
208427-602 NUT, LOCKNUT, LOCK
-
211707-268 BUMPER, REAR - PLATINUMBUMPER, REAR - PLATINUM
-
221623-428 SCREW, CAPSCREW, CAP
-
233706-920 SNOWFLAPSNOWFLAP
-
241623-532 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
*4706-054 KIT, TOOL (NOT ILLUSTRATED)KIT, TOOL (NOT ILLUSTRATED)
