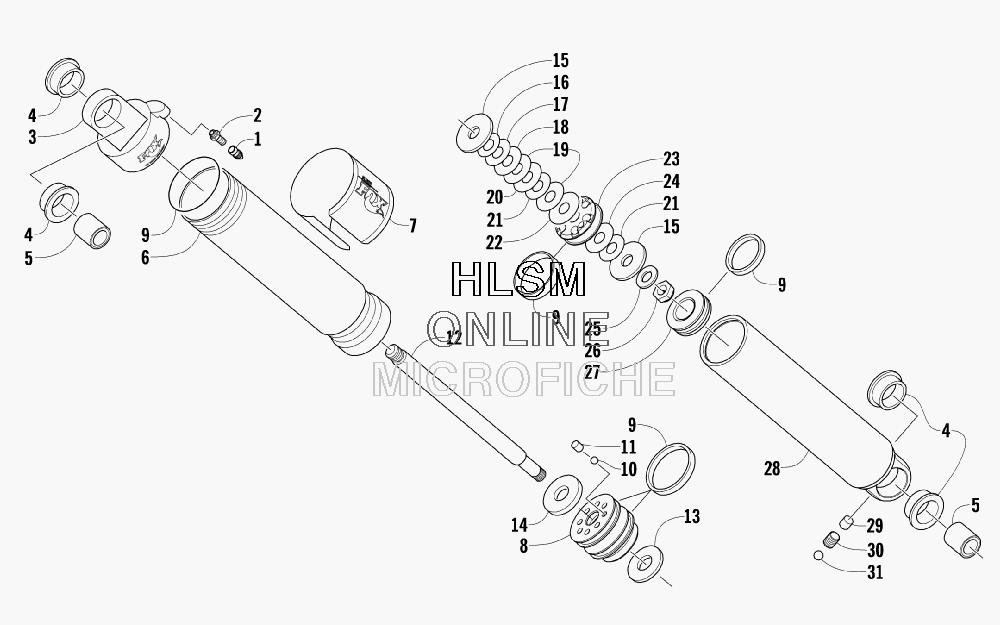

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска`
-
№АртикулНазвание
-
-1704-813 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
-2603-498 BEARING ASSEMBLY REBUILD KITBEARING ASSEMBLY REBUILD KIT
-
12603-327 CAP, AIR VALVECAP, AIR VALVE
-
22603-511 VALVE, AIRVALVE, AIR
-
33604-319 END CAP, SHOCKEND CAP, SHOCK
-
41604-222 BUSHING, SHOCKBUSHING, SHOCK
-
52604-223 SLEEVE, SHOCKSLEEVE, SHOCK
-
62603-665 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
72603-610 DECAL, SHOCKDECAL, SHOCK
-
82603-333 BEARING - ASSEMBLY*BEARING - ASSEMBLY*
-
92604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
101604-315 BALL, BLEEDBALL, BLEED
-
111603-940 SCREW, SETSCREW, SET
-
123604-320 ROD, SHOCKROD, SHOCK
-
130603-386 BUMPER, INTERNAL - TOP OUTBUMPER, INTERNAL - TOP OUT
-
143604-005 SPACERSPACER
-
150603-540 WASHER, TOP OUTWASHER, TOP OUT
-
160603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
170603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
180603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
190603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
200603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
210603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
220603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
232603-482 PISTON, 0.046 IN. - ORIFICEPISTON, 0.046 IN. - ORIFICE
-
240603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
250603-389 WASHER, BACKUPWASHER, BACKUP
-
260603-301 NUT, CAPNUT, CAP
-
272603-417 PISTON, FLOATINGPISTON, FLOATING
-
282603-335 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
291604-428 PLUG, RUBBER - VALVEPLUG, RUBBER - VALVE
-
302603-338 SCREW, SETSCREW, SET
-
312603-337 BALL, AIR VALVEBALL, AIR VALVE
-
**5639-240 OIL, SHOCK - 1 QT (NOT ILLUSTRATED)OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
-
**4639-012 FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)
