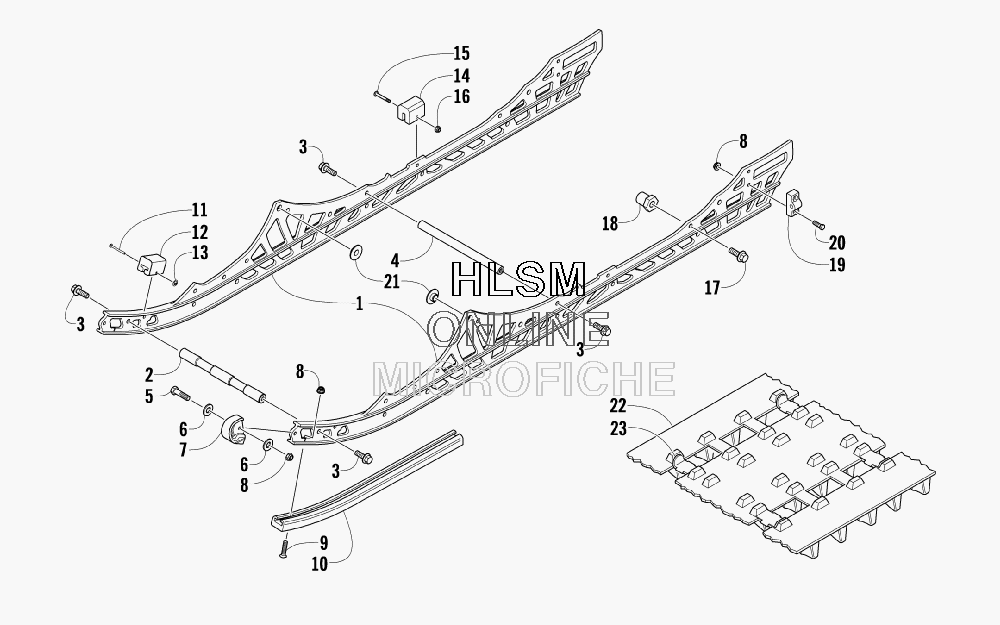

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat AC CROSSFIRE 600 - 2009 года выпуска`
-
№АртикулНазвание
-
1704-766 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-395 RAIL, FORMEDRAIL, FORMED
-
23604-401 AXLE, CROSSBRACE/LIMITERAXLE, CROSSBRACE/LIMITER
-
31623-502 SCREW, CAPSCREW, CAP
-
43604-402 AXLE, CROSSBRACEAXLE, CROSSBRACE
-
58002-043 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
73604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88047-366 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
103604-424 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
141604-429 PAD, SHOCKPAD, SHOCK
-
158017-405 SCREW, MACHINESCREW, MACHINE
-
168041-246 NUT, LOCKNUT, LOCK
-
171623-566 SCREW, CAPSCREW, CAP
-
183604-400 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
190704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
208002-042 SCREW, CAPSCREW, CAP
-
212604-733 INSERT, RAILINSERT, RAIL
-
222602-169 TRACK ASSEMBLY (INC. 23)TRACK ASSEMBLY (INC. 23)
-
232602-081 ...CLIP, GUIDE...CLIP, GUIDE
