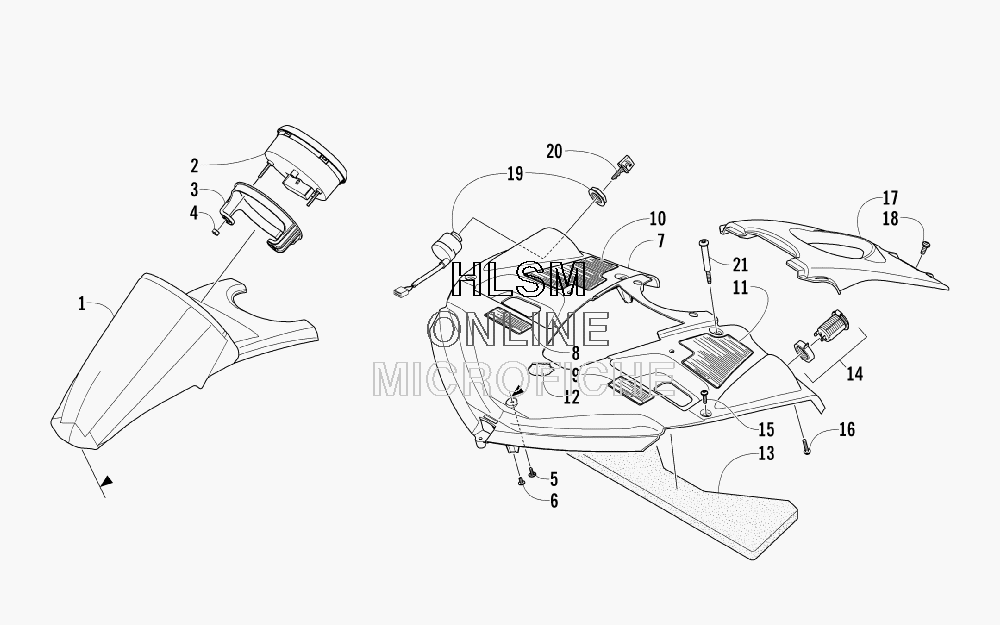

CONSOLE ASSEMBLY для Arctic Cat TZ1 TOURING - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    4606-575 HOUSING, SPEEDOMETER/TACHOMETER
    HOUSING, SPEEDOMETER/TACHOMETER
  • 2
    0620-320 SPEEDOMETER/TACHOMETER
    SPEEDOMETER/TACHOMETER
  • 3
    0620-322 BRACKET, RETAINING
    BRACKET, RETAINING
  • 4
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 5
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    1623-661 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    2718-437 CONSOLE - BLACK (INC. 8-11)
    CONSOLE - BLACK (INC. 8-11)
  • 8
    7611-575 ...DECAL, CAUTION - ENGLISH
    ...DECAL, CAUTION - ENGLISH
  • 9
    7611-574 ...DECAL, CAUTION - FRENCH
    ...DECAL, CAUTION - FRENCH
  • 10
    8611-275 ...DECAL, WARNING - TOURING - ENGLISH
    ...DECAL, WARNING - TOURING - ENGLISH
  • 11
    8611-276 ...DECAL, WARNING - TOURING - FRENCH
    ...DECAL, WARNING - TOURING - FRENCH
  • 12
    0617-558 FOAM, CONSOLE - FRONT
    FOAM, CONSOLE - FRONT
  • 13
    0617-559 FOAM, CONSOLE - REAR
    FOAM, CONSOLE - REAR
  • 14
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 15
    1623-618 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0623-785 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    4606-477 CLOSE-OFF, HANDLEBAR
    CLOSE-OFF, HANDLEBAR
  • 18
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    0609-698 SWITCH, IGNITION (INC. 20)
    SWITCH, IGNITION (INC. 20)
  • 20
    0409-059 ...KEY, BLANK
    ...KEY, BLANK
  • 21
    1623-669 SCREW, SHOULDER
    SCREW, SHOULDER
