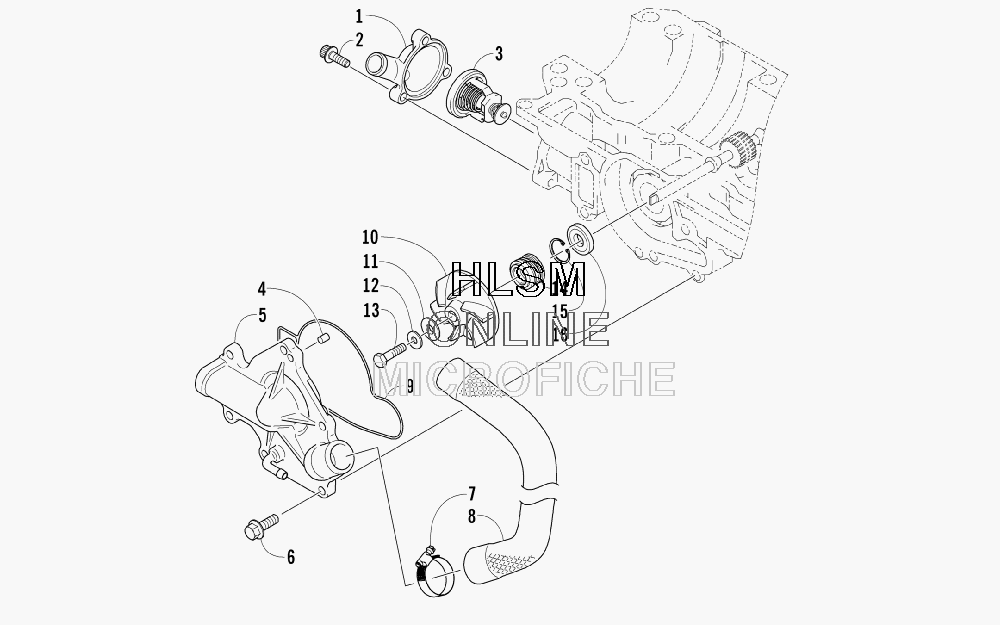

WATER PUMP/WATER MANIFOLD для Arctic Cat T500 - 2008 года выпуска`
-
№АртикулНазвание
-
13006-914 CAP, THERMOSTATCAP, THERMOSTAT
-
23007-446 BOLTBOLT
-
33007-041 THERMOSTATTHERMOSTAT
-
43005-899 PIN, DOWELPIN, DOWEL
-
53006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
63007-409 BOLTBOLT
-
73006-324 CLAMPCLAMP
-
83006-360 HOSE, WATER INLETHOSE, WATER INLET
-
93006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
103005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
113003-431 WASHERWASHER
-
123003-432 GASKETGASKET
-
133003-426 BOLTBOLT
-
143007-180 SEAL, WATER PUMPSEAL, WATER PUMP
-
153004-009 CIRCLIPCIRCLIP
-
163007-431 SEAL, OILSEAL, OIL
