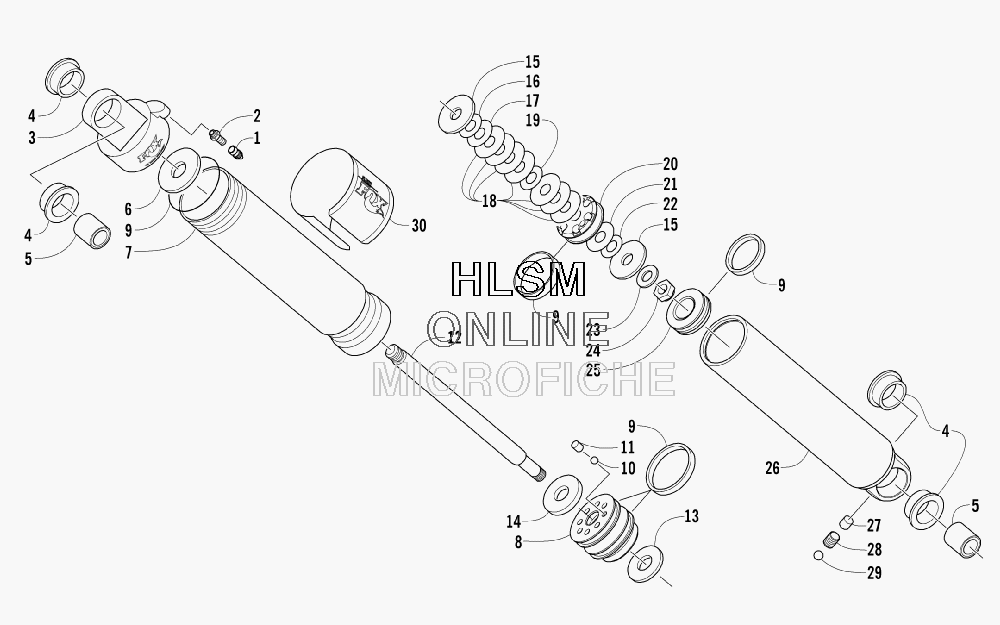

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M6 EFI - 2008 года выпуска`
-
№АртикулНазвание
-
1704-606 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-319 CAP, AIR VALVECAP, AIR VALVE
-
22603-511 VALVE, AIRVALVE, AIR
-
32603-327 END CAP, SHOCKEND CAP, SHOCK
-
41604-222 BUSHING, SHOCKBUSHING, SHOCK
-
52604-223 SLEEVE, SHOCKSLEEVE, SHOCK
-
62603-613 SPACER, AIR VOLUME REDUCERSPACER, AIR VOLUME REDUCER
-
72603-665 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
2603-498 BEARING ASSEMBLY REBUILD KITBEARING ASSEMBLY REBUILD KIT
-
82603-333 ...BEARING - ASSEMBLY...BEARING - ASSEMBLY
-
92604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
101604-315 BALL, BLEEDBALL, BLEED
-
111603-940 SCREWSCREW
-
123604-320 ROD, SHOCKROD, SHOCK
-
130603-386 BUMPER, INTERNAL - TOP OUTBUMPER, INTERNAL - TOP OUT
-
143604-005 SPACERSPACER
-
150603-540 WASHER, TOP OUTWASHER, TOP OUT
-
160603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
170603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
180603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
190603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
201603-314 PISTON, 0.039 IN. - ORIFICEPISTON, 0.039 IN. - ORIFICE
-
210603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
220603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUT, CAPNUT, CAP
-
252603-417 PISTON, FLOATINGPISTON, FLOATING
-
262603-335 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
271604-428 PLUG, RUBBER - VALVEPLUG, RUBBER - VALVE
-
282603-338 SCREW, SETSCREW, SET
-
292603-337 BALL, AIR VALVEBALL, AIR VALVE
-
302603-610 DECAL, SHOCKDECAL, SHOCK
-
**4639-368 OIL, SHOCK - 1 QT (NOT ILLUSTRATED)OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
-
**4639-012 FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)
