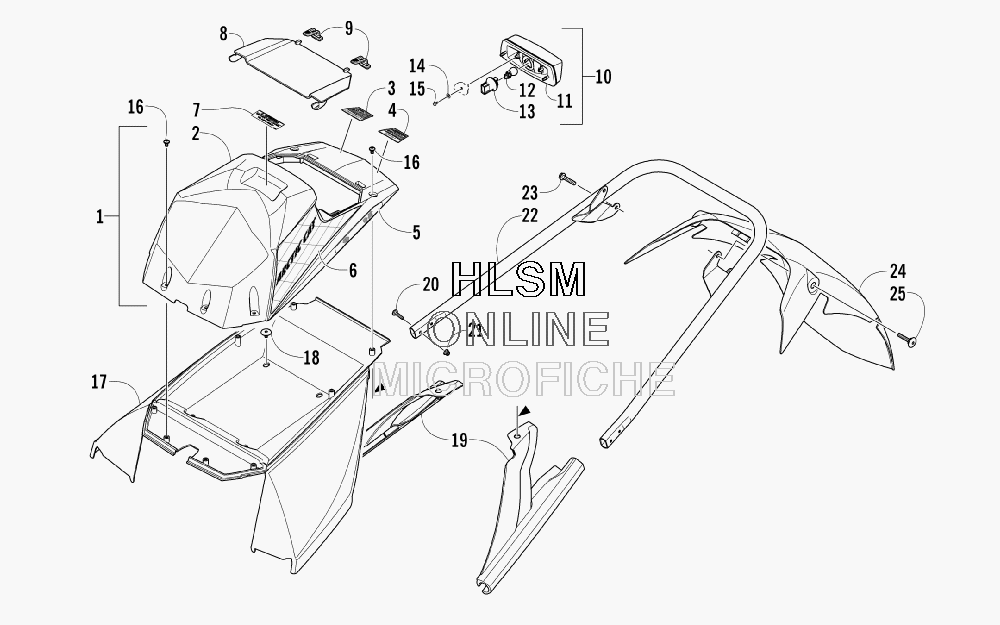

REAR BUMPER- STORAGE BOX- AND TAILLIGHT ASSEMBLY для Arctic Cat JAGUAR Z1 (BLACK) - 2008 года выпуска`
-
№АртикулНазвание
-
12718-208 BOX, STORAGE W/DECALS (INC. 2-6) (GREEN)BOX, STORAGE W/DECALS (INC. 2-6) (GREEN)
-
12718-209 BOX, STORAGE W/DECALS (INC. 2-6) (BLACK)BOX, STORAGE W/DECALS (INC. 2-6) (BLACK)
-
22718-365 ...BOX, STORAGE W/O DECALS (INC. 3-5)...BOX, STORAGE W/O DECALS (INC. 3-5)
-
37611-432 ......DECAL, WARNING - TOWING (FRENCH)......DECAL, WARNING - TOWING (FRENCH)
-
47611-433 ......DECAL, WARNING - TOWING (ENGLISH)......DECAL, WARNING - TOWING (ENGLISH)
-
58611-182 ......DECAL, REFLECTOR - RIGHT......DECAL, REFLECTOR - RIGHT
-
58611-183 ......DECAL, REFLECTOR - LEFT......DECAL, REFLECTOR - LEFT
-
67611-926 ...DECAL, STORAGE BOX - RIGHT (GREEN)...DECAL, STORAGE BOX - RIGHT (GREEN)
-
67611-927 ...DECAL, STORAGE BOX - LEFT (GREEN)...DECAL, STORAGE BOX - LEFT (GREEN)
-
67611-936 ...DECAL, STORAGE BOX - RIGHT (BLACK)...DECAL, STORAGE BOX - RIGHT (BLACK)
-
67611-937 ...DECAL, STORAGE BOX - LEFT (BLACK)...DECAL, STORAGE BOX - LEFT (BLACK)
-
77611-902 DECAL, STORAGE BOX - SEAT ADJUSTMENTDECAL, STORAGE BOX - SEAT ADJUSTMENT
-
84606-732 LID, REAR STORAGE BOX - BLACKLID, REAR STORAGE BOX - BLACK
-
94606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
100509-022 TAILLIGHT W/SOCKET ASSEMBLY (INC. 11-13)TAILLIGHT W/SOCKET ASSEMBLY (INC. 11-13)
-
110509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
120409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
130409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
148050-127 WASHERWASHER
-
150623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
174706-162 FENDER, REAR - TUNNELFENDER, REAR - TUNNEL
-
180423-101 SCREW, BODYSCREW, BODY
-
194606-728 PANEL, FILLER - SNOWFLAP - RIGHTPANEL, FILLER - SNOWFLAP - RIGHT
-
194606-729 PANEL, FILLER - SNOWFLAP - LEFTPANEL, FILLER - SNOWFLAP - LEFT
-
208476-630 SCREW, MACHINESCREW, MACHINE
-
218427-602 NUT, LOCKNUT, LOCK
-
221707-103 BUMPER, REARBUMPER, REAR
-
231623-428 SCREW, CAPSCREW, CAP
-
243706-920 SNOWFLAPSNOWFLAP
-
251623-532 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
*4706-055 KIT, TOOL (NOT ILLUSTRATED)KIT, TOOL (NOT ILLUSTRATED)
