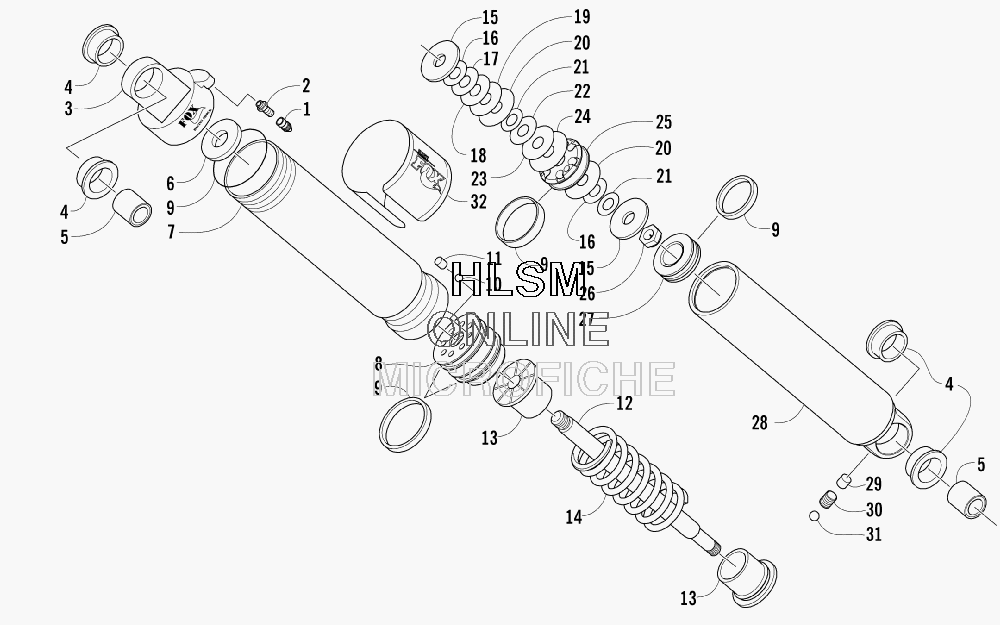

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat F6 EFI SNO PRO (BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 2703-116 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2603-327 CAP, AIR VALVE
    CAP, AIR VALVE
  • 2
    2603-326 VALVE, AIR
    VALVE, AIR
  • 3
    2603-418 END CAP, SHOCK
    END CAP, SHOCK
  • 4
    1604-222 BUSHING, SHOCK
    BUSHING, SHOCK
  • 5
    2604-223 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 6
    2603-613 SPACER, AIR VOLUME REDUCER
    SPACER, AIR VOLUME REDUCER
  • 7
    2603-665 BODY, SHOCK - UPPER
    BODY, SHOCK - UPPER
  • 2603-498 BEARING ASSEMBLY REBUILD KIT
    BEARING ASSEMBLY REBUILD KIT
  • 8
    2603-524 ...BEARING - ASSEMBLY
    ...BEARING - ASSEMBLY
  • 9
    2604-796 KIT, SEAL/CAP REBUILD
    KIT, SEAL/CAP REBUILD
  • 10
    1604-315 BALL, BLEED
    BALL, BLEED
  • 11
    1603-940 SCREW
    SCREW
  • 12
    2603-415 ROD, SHOCK
    ROD, SHOCK
  • 13
    2603-522 GUIDE, SPRING
    GUIDE, SPRING
  • 14
    2603-507 SPRING
    SPRING
  • 15
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 16
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 17
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 18
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 19
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 20
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 21
    0603-331 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 22
    0603-336 VALVE, 0.900 X 0.006 IN.
    VALVE, 0.900 X 0.006 IN.
  • 23
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 24
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 25
    2603-309 PISTON, 0.093 IN. - ORIFICE
    PISTON, 0.093 IN. - ORIFICE
  • 26
    0603-301 NUT, CAP
    NUT, CAP
  • 27
    2603-417 PISTON, FLOATING
    PISTON, FLOATING
  • 28
    2603-664 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 29
    1604-428 PLUG, RUBBER - VALVE
    PLUG, RUBBER - VALVE
  • 30
    2603-338 SCREW, SET
    SCREW, SET
  • 31
    2603-337 BALL, AIR VALVE
    BALL, AIR VALVE
  • 32
    2603-610 DECAL, SHOCK
    DECAL, SHOCK
  • **
    4639-368 OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
    OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
  • **
    4639-012 FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)
    FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)
