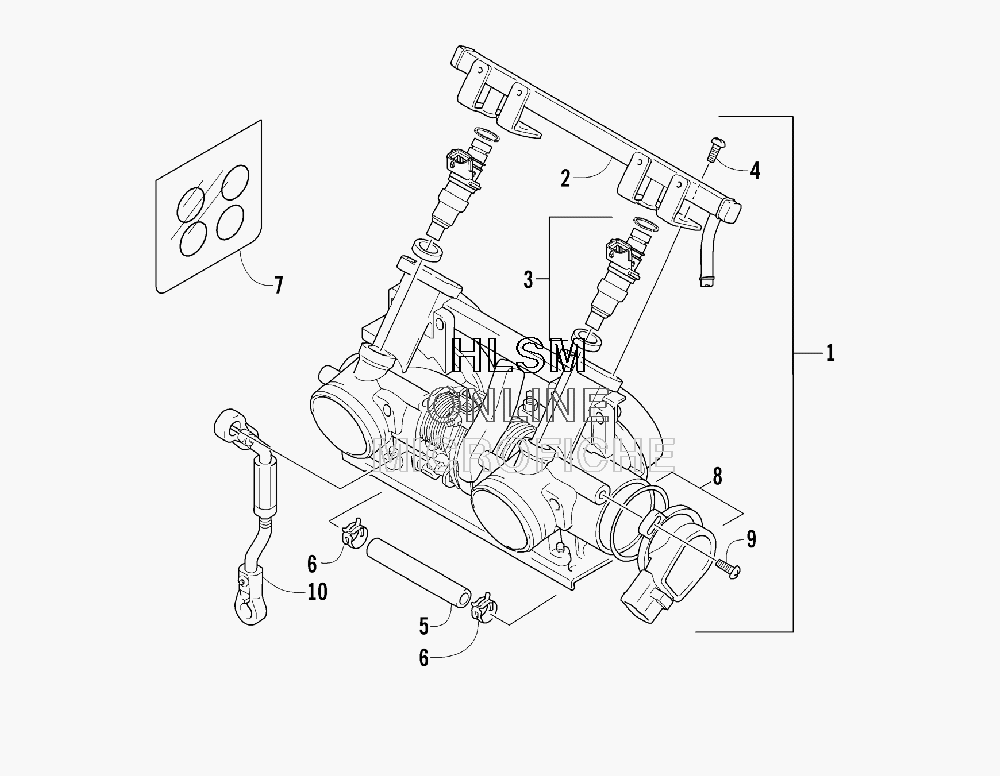

THROTTLE BODY ASSEMBLY для Arctic Cat F6 EFI LXR (BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-441 BODY, THROTTLE - ASSEMBLY N (INC. 2-9)
    BODY, THROTTLE - ASSEMBLY N (INC. 2-9)
  • 2
    3007-442 ...PIPE, DELIVERY
    ...PIPE, DELIVERY
  • 3
    3006-059 ...INJECTOR, FUEL - ASSEMBLY L
    ...INJECTOR, FUEL - ASSEMBLY L
  • 3
    3006-060 ...INJECTOR, FUEL - ASSEMBLY N
    ...INJECTOR, FUEL - ASSEMBLY N
  • 3
    3006-061 ...INJECTOR, FUEL - ASSEMBLY S
    ...INJECTOR, FUEL - ASSEMBLY S
  • 4
    3007-443 ...SCREW
    ...SCREW
  • 5
    3006-723 ...HOSE
    ...HOSE
  • 6
    3004-193 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 7
    3005-692 ...O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
    ...O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
  • 8
    3006-939 ...SENSOR, THROTTLE - ASSEMBLY
    ...SENSOR, THROTTLE - ASSEMBLY
  • 9
    3007-026 ...SCREW
    ...SCREW
  • 10
    3006-514 ROD, CONTROL - OIL PUMP
    ROD, CONTROL - OIL PUMP
