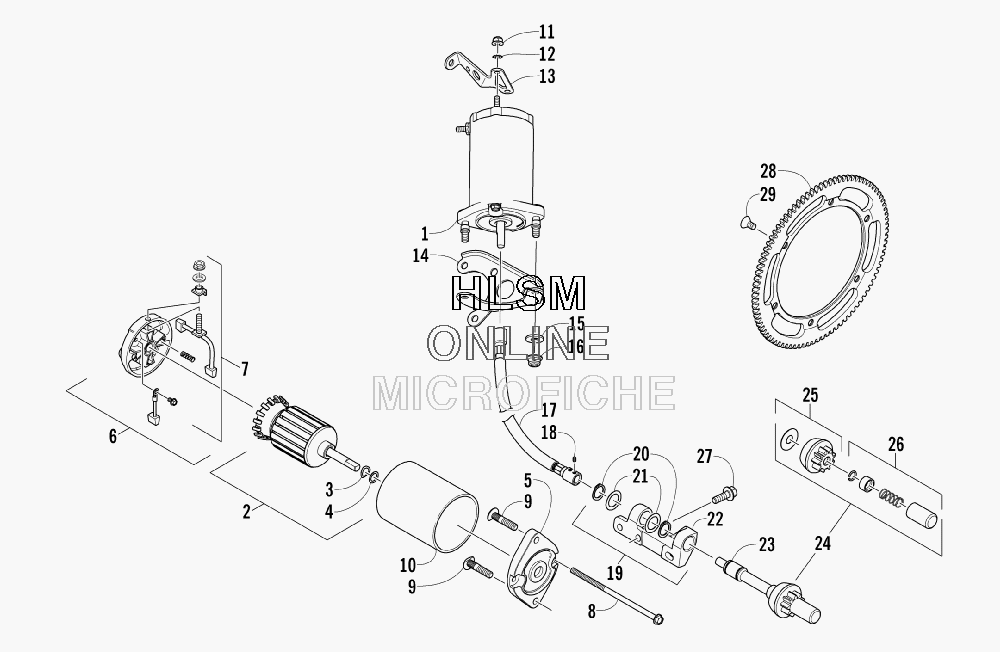

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat F5 EFI LXR (GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-143 MOTOR, STARTER - ASSEMBLY (INC. 2-10)
    MOTOR, STARTER - ASSEMBLY (INC. 2-10)
  • 2
    0645-296 ...ARMATURE ASSEMBLY (INC. 3-4)
    ...ARMATURE ASSEMBLY (INC. 3-4)
  • 3
    0645-131 ......WASHER, WAVE
    ......WASHER, WAVE
  • 4
    0645-293 ......WASHER, THRUST
    ......WASHER, THRUST
  • 5
    0645-297 ...CAP, DRIVE
    ...CAP, DRIVE
  • 6
    0645-313 ...CAP, COMMUTATOR (INC. 7)
    ...CAP, COMMUTATOR (INC. 7)
  • 7
    0645-275 ......KIT, BRUSH AND SPRING
    ......KIT, BRUSH AND SPRING
  • 8
    0645-128 ...THROUGH-BOLT
    ...THROUGH-BOLT
  • 9
    0623-093 ...BOLT, RIBBED
    ...BOLT, RIBBED
  • 11
    8047-366 NUT, LOCK
    NUT, LOCK
  • 12
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 13
    0745-326 BRACKET, MOUNTING - STARTER MOTOR - TOP
    BRACKET, MOUNTING - STARTER MOTOR - TOP
  • 14
    0745-321 BRACKET, MOUNTING - STARTER MOTOR - BOTTOM
    BRACKET, MOUNTING - STARTER MOTOR - BOTTOM
  • 15
    0123-053 WASHER
    WASHER
  • 16
    8047-426 NUT, LOCK
    NUT, LOCK
  • 17
    0745-312 SHAFT, FLEX-DRIVE (INC. TWO NO. 18)
    SHAFT, FLEX-DRIVE (INC. TWO NO. 18)
  • 18
    0623-891 ...SCREW, SET - SOCKET
    ...SCREW, SET - SOCKET
  • 19
    0745-208 BRACKET, PINION DRIVE - ASSEMBLY (INC. 20-26)
    BRACKET, PINION DRIVE - ASSEMBLY (INC. 20-26)
  • 20
    0645-382 ...RING, SNAP
    ...RING, SNAP
  • 21
    0645-429 ...WASHER, THRUST
    ...WASHER, THRUST
  • 22
    0745-165 ...BRACKET, PINION DRIVE
    ...BRACKET, PINION DRIVE
  • 23
    0745-170 ...DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 24-26)
    ...DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 24-26)
  • 24
    0745-224 ......KIT, PINION DRIVE ASSEMBLY (INC. 25-26)
    ......KIT, PINION DRIVE ASSEMBLY (INC. 25-26)
  • 25
    0645-380 .........PINION DRIVE ASSEMBLY
    .........PINION DRIVE ASSEMBLY
  • 26
    0645-186 .........PINION STOPPER ASSEMBLY
    .........PINION STOPPER ASSEMBLY
  • 27
    8026-131 SCREW, CAP
    SCREW, CAP
  • 28
    0645-494 RING GEAR
    RING GEAR
  • 29
    1623-128 SCREW, MACHINE - SOCKET HEAD
    SCREW, MACHINE - SOCKET HEAD
