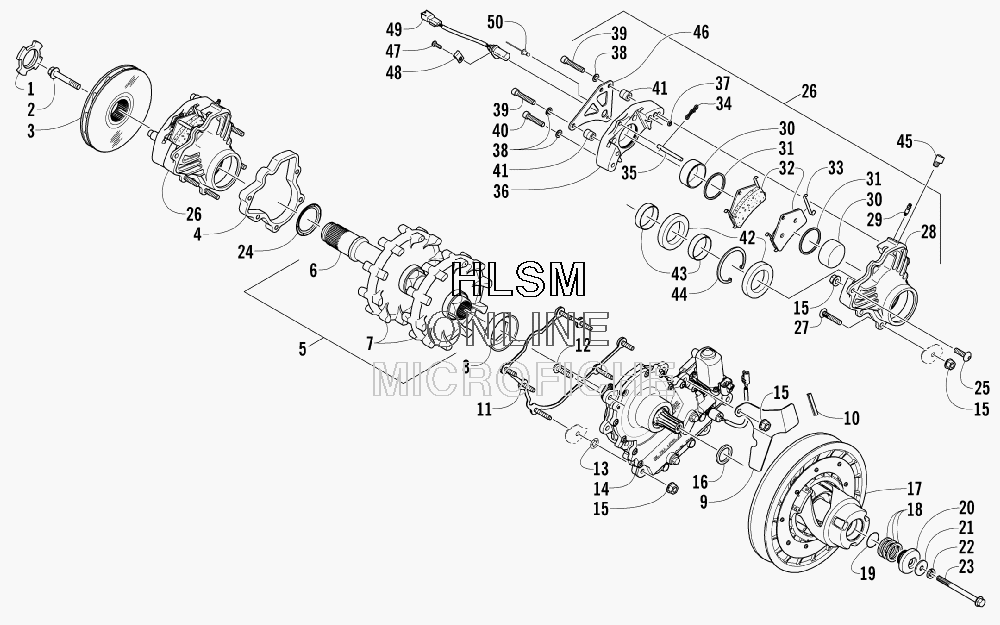

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat F1000 EFI LXR (GREEN) - 2008 года выпуска`
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-480 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
50728-169 TRACK, DRIVE - ASSEMBLY (INC. 6-7)TRACK, DRIVE - ASSEMBLY (INC. 6-7)
-
60702-940 ...DRIVESHAFT...DRIVESHAFT
-
71602-783 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
81602-984 SEALSEAL
-
94606-939 SHIELD, ACTUATORSHIELD, ACTUATOR
-
100706-371 TRIMTRIM
-
110702-819 PLATE, MOUNTING - REVERSEPLATE, MOUNTING - REVERSE
-
128476-830 SCREW, MACHINESCREW, MACHINE
-
131623-355 NUT, PUSHNUT, PUSH
-
140702-947 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
158427-802 NUT, LOCKNUT, LOCK
-
160648-442 WASHER,FLAT-1.188 X 1.730 X .030WASHER,FLAT-1.188 X 1.730 X .030
-
160648-443 WASHER,FLAT-1.188 X 1.730 X .060WASHER,FLAT-1.188 X 1.730 X .060
-
170726-278 CLUTCH, DRIVENCLUTCH, DRIVEN
-
180648-714 WASHER, DRIVEN .090 THICKWASHER, DRIVEN .090 THICK
-
180648-715 WASHER, DRIVEN .030 THICKWASHER, DRIVEN .030 THICK
-
180648-716 WASHER, DRIVEN .060 THICKWASHER, DRIVEN .060 THICK
-
190648-441 O-RINGO-RING
-
200648-762 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
218050-277 WASHERWASHER
-
228051-272 WASHER, LOCKWASHER, LOCK
-
231623-572 SCREW, CAPSCREW, CAP
-
242602-076 SHIELD, BEARINGSHIELD, BEARING
-
258477-845 SCREW, MACHINESCREW, MACHINE
-
261702-018 CALIPER, BRAKE - ASSEMBLY (INC. 27-44)CALIPER, BRAKE - ASSEMBLY (INC. 27-44)
-
271623-713 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
291602-458 ...FITTING, BLEED...FITTING, BLEED
-
301602-461 ...PISTON...PISTON
-
311602-669 ...O-RING...O-RING
-
320702-563 ...PAD, BRAKE - SET (INC. 33-34)...PAD, BRAKE - SET (INC. 33-34)
-
331602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
341602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
351602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
370602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
380402-165 ...WASHER...WASHER
-
391602-671 ...SCREW, CAP...SCREW, CAP
-
401602-670 ...SCREW, CAP...SCREW, CAP
-
412602-132 ...SPACER, SPEEDOMETER BRACKET...SPACER, SPEEDOMETER BRACKET
-
422602-131 ...BEARING...BEARING
-
431602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
441602-456 ...RING, RETAINING...RING, RETAINING
-
451602-978 FITTING, INLETFITTING, INLET
-
464606-309 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
478468-617 SCREW, MACHINESCREW, MACHINE
-
481623-676 CLAMPCLAMP
-
490630-207 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
508060-602 RIVETRIVET
