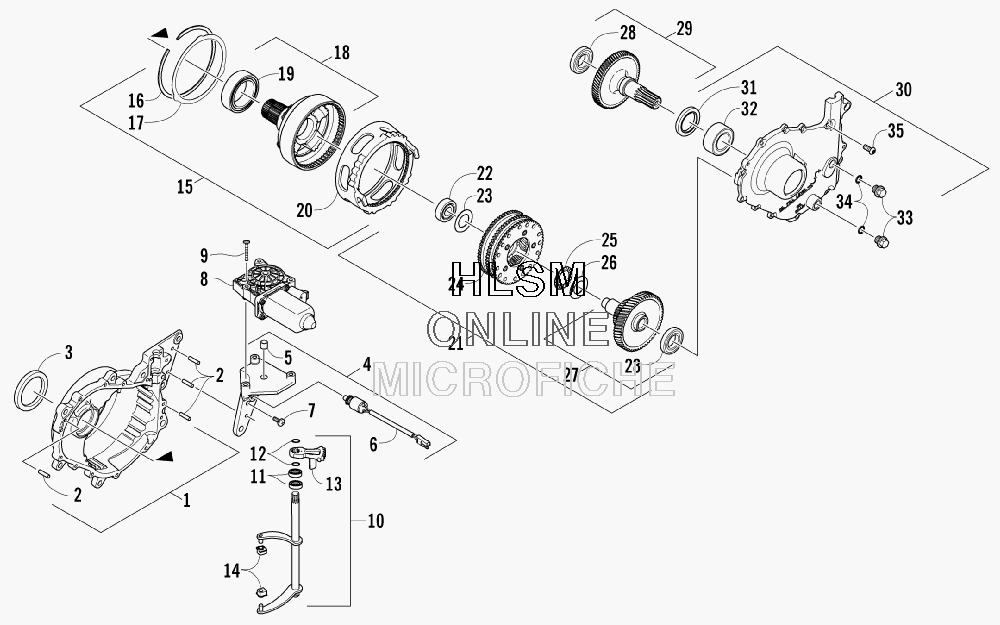

GEARCASE ASSEMBLY для Arctic Cat CROSSFIRE 600 EFI - 2008 года выпуска

  • №
    Артикул
    Название
  • 0702-956 COMPLETE GEARCASE ASSEMBLY
    COMPLETE GEARCASE ASSEMBLY
  • 1
    0702-951 GEARCASE (INC. 2-3)
    GEARCASE (INC. 2-3)
  • 2
    1602-915 ...PIN, DOWEL
    ...PIN, DOWEL
  • 3
    2602-159 ...SEAL, OIL
    ...SEAL, OIL
  • 4
    0702-891 BRACKET, MOUNTING - REVERSE ACTUATOR (INC. 5-6)
    BRACKET, MOUNTING - REVERSE ACTUATOR (INC. 5-6)
  • 5
    1602-916 ...BEARING
    ...BEARING
  • 6
    0630-228 ...SWITCH, ALARM
    ...SWITCH, ALARM
  • 7
    0423-538 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    0630-220 ACTUATOR, REVERSE
    ACTUATOR, REVERSE
  • 9
    8468-536 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    1702-003 FORK, SHIFT - ASSEMBLY (INC. 11-13)
    FORK, SHIFT - ASSEMBLY (INC. 11-13)
  • 11
    2602-013 ...SEAL, OIL
    ...SEAL, OIL
  • 12
    2602-057 ...RING, RETAINING
    ...RING, RETAINING
  • 13
    2602-007 ...ARM, SHIFT FORK
    ...ARM, SHIFT FORK
  • 14
    2602-127 BLOCK, SLIDER
    BLOCK, SLIDER
  • 15
    0702-910 SLIDER ASSEMBLY (INC. 16-20)
    SLIDER ASSEMBLY (INC. 16-20)
  • 16
    2602-040 ...RING, RETAINING
    ...RING, RETAINING
  • 17
    2602-064 ...WASHER, THRUST
    ...WASHER, THRUST
  • 18
    0702-758 ...SHAFT, OUTPUT (INC. 19)
    ...SHAFT, OUTPUT (INC. 19)
  • 20
    2602-063 ...SLIDER
    ...SLIDER
  • 21
    0702-848 GEAR, TRANSFER - 60/34T - ASSEMBLY (INC. 22-27 AND ONE NO. 28)
    GEAR, TRANSFER - 60/34T - ASSEMBLY (INC. 22-27 AND ONE NO. 28)
  • 22
    1602-842 ...BEARING
    ...BEARING
  • 23
    2602-058 ...WASHER, SPACER
    ...WASHER, SPACER
  • 24
    0702-867 ...GEAR, PLANETARY - ASSEMBLY
    ...GEAR, PLANETARY - ASSEMBLY
  • 25
    1602-840 ...BEARING, THRUST
    ...BEARING, THRUST
  • 26
    1602-841 ...WASHER, THRUST
    ...WASHER, THRUST
  • 27
    0702-847 ...GEAR, TRANSFER (INC. ONE NO. 28)
    ...GEAR, TRANSFER (INC. ONE NO. 28)
  • 28
    1602-981 ......BEARING
    ......BEARING
  • 29
    0702-691 SHAFT, INPUT - 60T (INC. ONE NO. 28)
    SHAFT, INPUT - 60T (INC. ONE NO. 28)
  • 30
    0702-953 COVER, GEARCASE (INC. 31-34)
    COVER, GEARCASE (INC. 31-34)
  • 31
    2602-160 ...SEAL, OIL
    ...SEAL, OIL
  • 32
    1602-982 ...BEARING
    ...BEARING
  • 33
    2602-099 ...PLUG, GEARCASE
    ...PLUG, GEARCASE
  • 34
    1602-213 ...O-RING
    ...O-RING
  • 35
    1623-683 SCREW, MACHINE
    SCREW, MACHINE
  • **
    4639-628 FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)
    FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)
