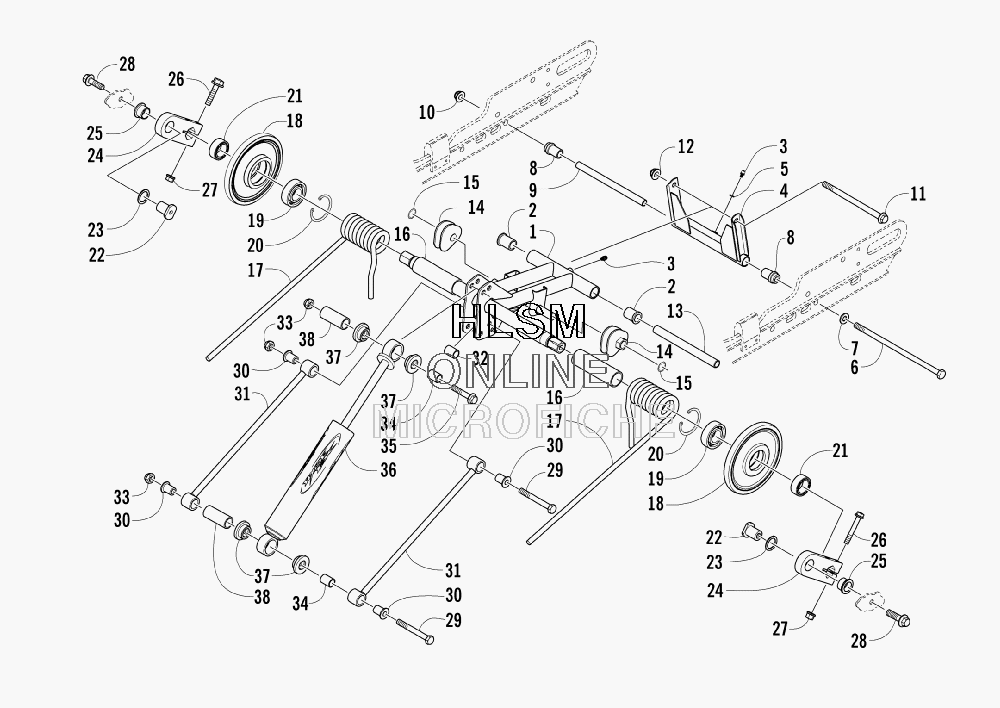

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat CROSSFIRE 500 EFI - 2008 года выпуска`
-
№АртикулНазвание
-
11704-404 ARM, IDLER - BLACK (INC. 2 AND ONE NO. 3)ARM, IDLER - BLACK (INC. 2 AND ONE NO. 3)
-
21604-100 ...BUSHING, FLARED...BUSHING, FLARED
-
31623-010 ...FITTING, GREASE - SELF-TAPPING...FITTING, GREASE - SELF-TAPPING
-
41704-019 ARM, REAR - BLACK (INC. ONE NO. 3 AND 5)ARM, REAR - BLACK (INC. ONE NO. 3 AND 5)
-
51623-011 ...WASHER, GREASE FITTING...WASHER, GREASE FITTING
-
61623-037 SCREW, CAPSCREW, CAP
-
78050-272 WASHERWASHER
-
82604-664 BUSHING, REAR ARMBUSHING, REAR ARM
-
92604-663 AXLE, REAR ARM - INNERAXLE, REAR ARM - INNER
-
108047-490 NUT, LOCKNUT, LOCK
-
111623-086 SCREW, CAPSCREW, CAP
-
128047-486 NUT, LOCKNUT, LOCK
-
132604-370 AXLE, STEELAXLE, STEEL
-
141604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
141604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
150623-138 RING, RETAININGRING, RETAINING
-
163604-024 SLEEVE, SPRINGSLEEVE, SPRING
-
171704-044 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
171704-045 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
181604-690 WHEEL, IDLER (INC. 19-20)WHEEL, IDLER (INC. 19-20)
-
190107-598 ...BEARING...BEARING
-
200123-798 ...RING, RETAINING...RING, RETAINING
-
212604-980 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
223604-158 AXLE, POWDER METALAXLE, POWDER METAL
-
231604-187 WASHER, PIVOT - IDLER ARMWASHER, PIVOT - IDLER ARM
-
241704-522 ARM, PIVOT IDLER (INC. 25-27)ARM, PIVOT IDLER (INC. 25-27)
-
253604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
268020-138 ...SCREW, CAP...SCREW, CAP
-
278047-426 ...NUT, LOCK...NUT, LOCK
-
281623-166 SCREW, CAPSCREW, CAP
-
290623-793 SCREW, CAPSCREW, CAP
-
301604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
311704-416 LINK, REAR SHOCK - BLACKLINK, REAR SHOCK - BLACK
-
320704-854 SPACER, SHOCK LINK - BLACKSPACER, SHOCK LINK - BLACK
-
338041-486 NUT, LOCKNUT, LOCK
-
341604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
358020-226 SCREW, CAPSCREW, CAP
-
363604-154 SHOCK ABSORBER - REAR ARM (INC. 37-38)SHOCK ABSORBER - REAR ARM (INC. 37-38)
-
371604-262 ...BUSHING...BUSHING
-
381604-397 ...SLEEVE...SLEEVE
