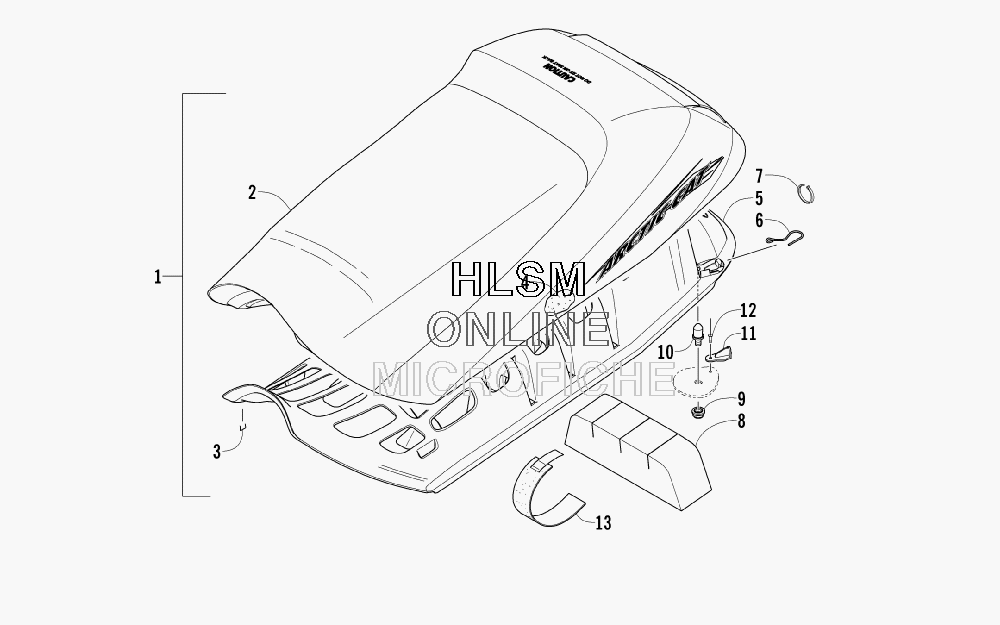

SEAT ASSEMBLY для Arctic Cat CROSSFIRE 1000 EFI - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7999-544 COMPLETE SEAT ASSEMBLY (INC. 2-8)
    COMPLETE SEAT ASSEMBLY (INC. 2-8)
  • 2
    3706-889 ...COVER, SEAT
    ...COVER, SEAT
  • 3
    0624-528 ...STAPLE, SEAT COVER
    ...STAPLE, SEAT COVER
  • 4
    3706-118 ...FOAM, SEAT CUSHION
    ...FOAM, SEAT CUSHION
  • 5
    4606-128 ...SEAT-BASE
    ...SEAT-BASE
  • 6
    1623-393 ...CLIP, RETAINING - SEAT-BASE
    ...CLIP, RETAINING - SEAT-BASE
  • 7
    0123-788 ...CABLE TIE - 8 IN.
    ...CABLE TIE - 8 IN.
  • 8
    0617-512 ...FOAM, COMPARTMENT - SEAT
    ...FOAM, COMPARTMENT - SEAT
  • 9
    8047-426 NUT, LOCK
    NUT, LOCK
  • 10
    1623-458 STUD, LATCH - SEAT-BASE
    STUD, LATCH - SEAT-BASE
  • 11
    4606-322 COVER, LATCH - SEAT - RIGHT
    COVER, LATCH - SEAT - RIGHT
  • 12
    8061-628 RIVET
    RIVET
  • 13
    3706-033 RETAINER, TOOL KIT
    RETAINER, TOOL KIT
  • *
    3706-731 KIT, TOOL (NOT ILLUSTRATED)
    KIT, TOOL (NOT ILLUSTRATED)
