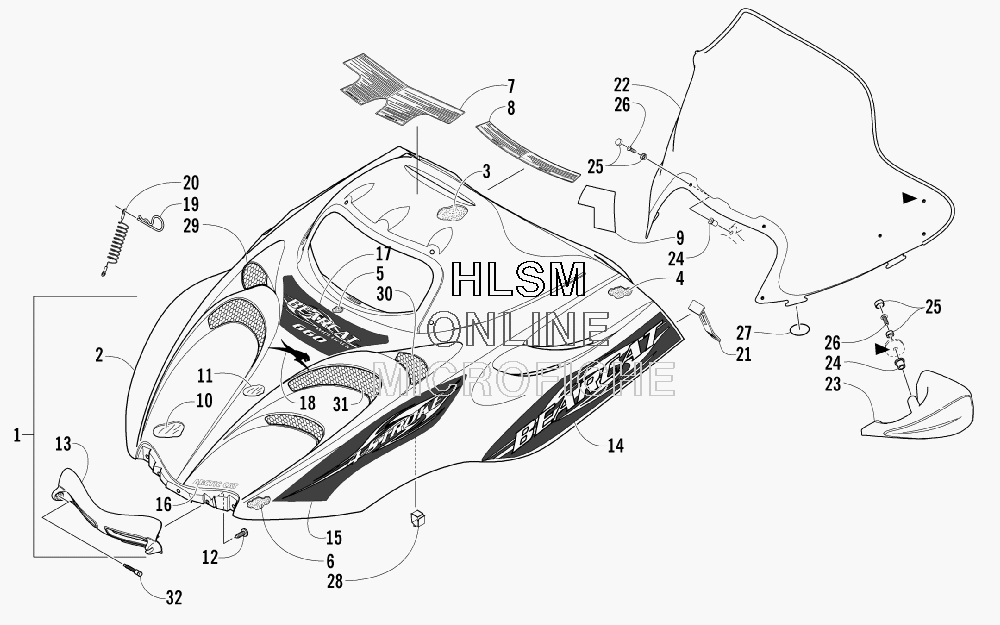

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-389 HOOD W/DECALS (INC. 2-18)
    HOOD W/DECALS (INC. 2-18)
  • 2
    2718-388 ...HOOD W/O DECALS (INC. 3-13)
    ...HOOD W/O DECALS (INC. 3-13)
  • 3
    0617-508 ......FOAM, HOOD - UPPER MIDDLE - RIGHT
    ......FOAM, HOOD - UPPER MIDDLE - RIGHT
  • 4
    0617-326 ......FOAM, HOOD - REAR - RIGHT
    ......FOAM, HOOD - REAR - RIGHT
  • 4
    0617-327 ......FOAM, HOOD - REAR - LEFT
    ......FOAM, HOOD - REAR - LEFT
  • 5
    0617-475 ......FOAM, HOOD - MIDDLE
    ......FOAM, HOOD - MIDDLE
  • 6
    0617-506 ......FOAM, HOOD - FRONT - RIGHT
    ......FOAM, HOOD - FRONT - RIGHT
  • 6
    0617-507 ......FOAM, HOOD - FRONT - LEFT
    ......FOAM, HOOD - FRONT - LEFT
  • 7
    3611-485 ......DECAL, WARNING - GENERAL AND BRAKE
    ......DECAL, WARNING - GENERAL AND BRAKE
  • 8
    3611-970 ......DECAL, CAUTION - ENGINE/BATTERY/FUEL
    ......DECAL, CAUTION - ENGINE/BATTERY/FUEL
  • 9
    3611-580 ......DECAL, REVERSE
    ......DECAL, REVERSE
  • 10
    1606-938 ......FOIL, HOOD - RIGHT
    ......FOIL, HOOD - RIGHT
  • 10
    1606-939 ......FOIL, HOOD - LEFT
    ......FOIL, HOOD - LEFT
  • 11
    2606-935 ......FOIL, HOOD
    ......FOIL, HOOD
  • 12
    0623-797 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 13
    5606-117 ......HINGE, HOOD
    ......HINGE, HOOD
  • 14
    7611-838 ...DECAL, HOOD - LOWER RIGHT
    ...DECAL, HOOD - LOWER RIGHT
  • 14
    7611-839 ...DECAL, HOOD - LOWER LEFT
    ...DECAL, HOOD - LOWER LEFT
  • 15
    7611-826 ...DECAL, HOOD - UPPER RIGHT
    ...DECAL, HOOD - UPPER RIGHT
  • 15
    7611-827 ...DECAL, HOOD - UPPER LEFT
    ...DECAL, HOOD - UPPER LEFT
  • 16
    7611-832 ...DECAL, "ARCTIC CAT" - HOOD
    ...DECAL, "ARCTIC CAT" - HOOD
  • 17
    7611-836 ...DECAL, HOOD - CREST
    ...DECAL, HOOD - CREST
  • 18
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 19
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 20
    3606-746 CABLE, HOOD
    CABLE, HOOD
  • 21
    1606-067 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 22
    4606-754 WINDSHIELD
    WINDSHIELD
  • 23
    2639-477 MIRROR - KIT (INC. SIX NO. 24-26)
    MIRROR - KIT (INC. SIX NO. 24-26)
  • 24
    0623-845 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 25
    0124-054 ...SNAP CAP W/WASHER
    ...SNAP CAP W/WASHER
  • 26
    0623-902 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 27
    0616-032 O-RING
    O-RING
  • 28
    0123-394 CLIP, RETAINING
    CLIP, RETAINING
  • 29
    2706-408 SCREEN, HOOD - RIGHT - BLACK
    SCREEN, HOOD - RIGHT - BLACK
  • 30
    2706-409 SCREEN, HOOD - UPPER LEFT - BLACK
    SCREEN, HOOD - UPPER LEFT - BLACK
  • 31
    2706-407 SCREEN, HOOD - LEFT - BLACK
    SCREEN, HOOD - LEFT - BLACK
  • 32
    1623-016 SCREW, MACHINE
    SCREW, MACHINE
