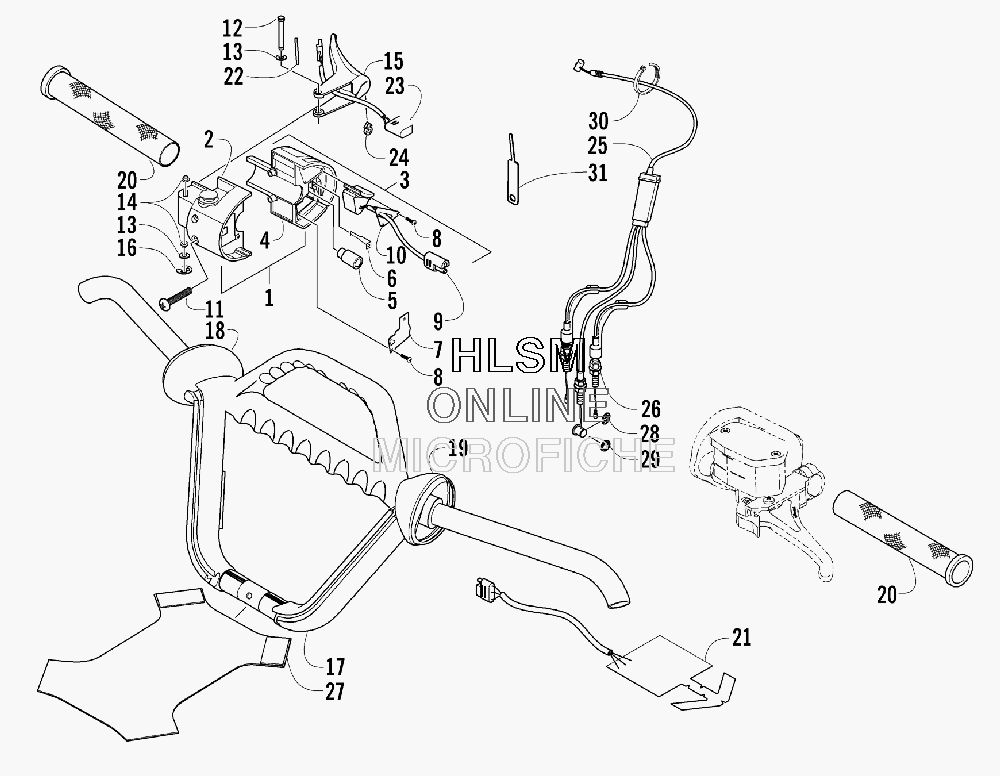

HANDLEBAR AND CONTROLS для Arctic Cat BEARCAT 570 - 2008 года выпуска`
-
№АртикулНазвание
-
10609-520 CONTROL, THROTTLE (HIGH/LOW) (INC. 2-10)CONTROL, THROTTLE (HIGH/LOW) (INC. 2-10)
-
20609-521 ...CONTROL, THROTTLE - STOP SWITCH HALF...CONTROL, THROTTLE - STOP SWITCH HALF
-
30609-522 ...CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. 4-10) (INC. TWO NO. 8)...CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. 4-10) (INC. TWO NO. 8)
-
40609-495 ......CONTROL, THROTTLE - THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTS......CONTROL, THROTTLE - THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTS
-
50609-497 ......PLUG, RUBBER......PLUG, RUBBER
-
60609-498 ......CLIP, RETAINING - THROTTLE CABLE......CLIP, RETAINING - THROTTLE CABLE
-
70609-496 ......PLATE, COVER......PLATE, COVER
-
80609-312 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
90609-523 ......SWITCH, THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. THREE NO. 8 AND 10)......SWITCH, THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. THREE NO. 8 AND 10)
-
100609-378 .........PLATE, COVER.........PLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER - THROTTLEWASHER, SHOULDER - THROTTLE
-
150609-368 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-387 HANDLEBAR ASSEMBLYHANDLEBAR ASSEMBLY
-
180605-556 END CAP, THROTTLE - RIGHTEND CAP, THROTTLE - RIGHT
-
190605-557 END CAP, BRAKE - LEFTEND CAP, BRAKE - LEFT
-
204606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
210609-724 ELEMENT, HANDWARMER (HIGH/LOW)ELEMENT, HANDWARMER (HIGH/LOW)
-
220617-248 PAD, INSULATORPAD, INSULATOR
-
230609-680 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240623-262 CLIP, WIRECLIP, WIRE
-
250687-182 CABLE, THROTTLE (INC. 26)CABLE, THROTTLE (INC. 26)
-
260623-464 ...NUT, LOCKING - THROTTLE CABLE...NUT, LOCKING - THROTTLE CABLE
-
270705-905 WRAP, HANDLEBARWRAP, HANDLEBAR
-
280124-057 E-RINGE-RING
-
290124-056 WASHERWASHER
-
300123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
311639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
