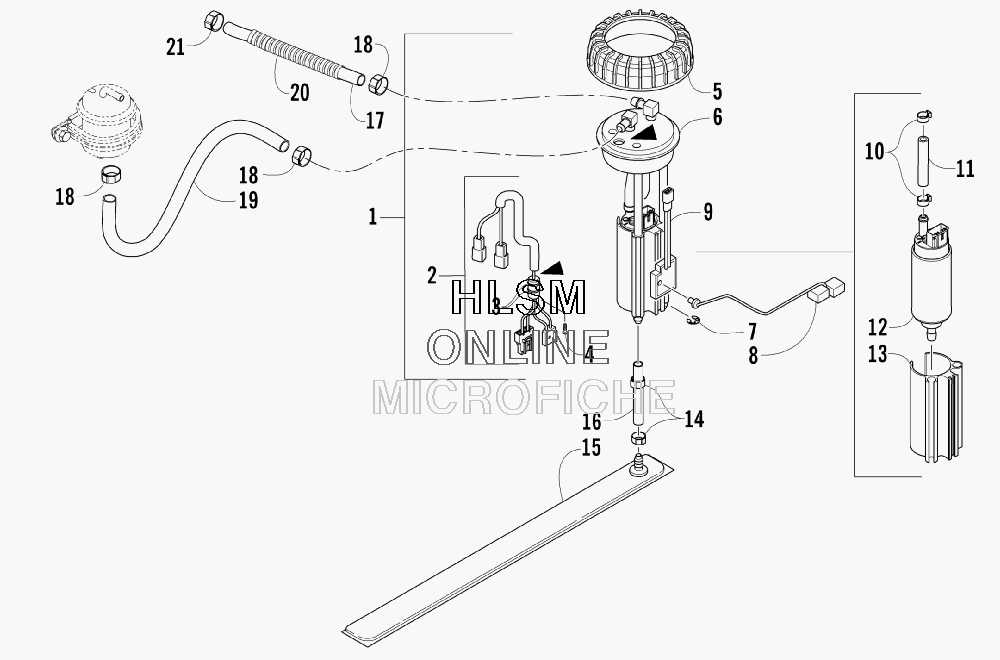

FUEL PUMP ASSEMBLY для Arctic Cat BEAR WIDE TRACK TURBO INTERNATIONAL - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-746 PUMP, FUEL - ASSEMBLY (INC. 2-13)
    PUMP, FUEL - ASSEMBLY (INC. 2-13)
  • 2
    1670-612 ...HARNESS, FUEL PUMP (INC. 3)
    ...HARNESS, FUEL PUMP (INC. 3)
  • 4
    1670-412 ...SCREW, MACHINE - HARNESS
    ...SCREW, MACHINE - HARNESS
  • 5
    1670-119 ...NUT, RETAINING - FUEL PUMP
    ...NUT, RETAINING - FUEL PUMP
  • 6
    1670-118 ...SEAL, FUEL PUMP HOUSING
    ...SEAL, FUEL PUMP HOUSING
  • 7
    1670-244 ...RING, RETAINING
    ...RING, RETAINING
  • 8
    1670-810 ...ARM, FLOAT
    ...ARM, FLOAT
  • 9
    1670-809 ...ELEMENT, FUEL SENSOR
    ...ELEMENT, FUEL SENSOR
  • 10
    1670-520 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 11
    1670-805 ...HOSE, FUEL PUMP - TOP
    ...HOSE, FUEL PUMP - TOP
  • 12
    1670-531 ...PUMP, FUEL
    ...PUMP, FUEL
  • 13
    1670-413 ...HOUSING, FUEL PUMP
    ...HOUSING, FUEL PUMP
  • 14
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    1670-525 FILTER, FUEL PICKUP
    FILTER, FUEL PICKUP
  • 16
    0610-540 HOSE, GASLINE
    HOSE, GASLINE
  • 17
    0610-691 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 18
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0610-075 HOSE, GASLINE - 10 FT
    HOSE, GASLINE - 10 FT
  • 20
    0716-507 CONDUIT
    CONDUIT
  • 21
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
