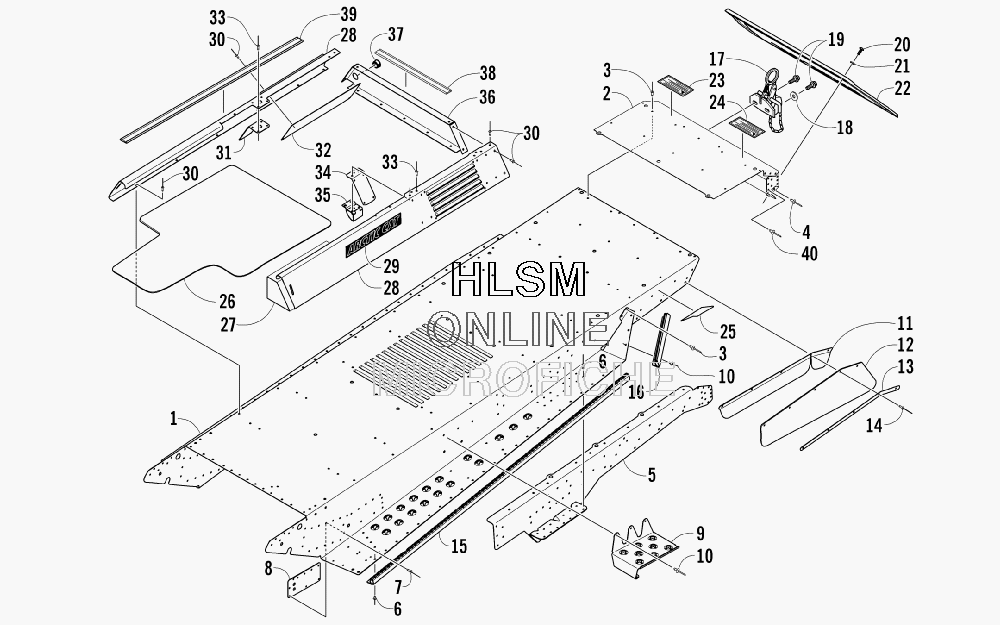

TUNNEL AND REAR BUMPER ASSEMBLY для Arctic Cat BEAR WIDE TRACK TURBO CANADIAN ARTICULATING - 2008 года выпуска`
-
№АртикулНазвание
-
11718-942 TUNNEL ASSEMBLY (INC. 2-6)TUNNEL ASSEMBLY (INC. 2-6)
-
23706-677 ...BUMPER, REAR...BUMPER, REAR
-
38060-484 ...RIVET...RIVET
-
41623-130 ...RIVET...RIVET
-
50707-966 ...BRACKET, SUSPENSION MOUNTING - RIGHT...BRACKET, SUSPENSION MOUNTING - RIGHT
-
50707-967 ...BRACKET, SUSPENSION MOUNTING - LEFT...BRACKET, SUSPENSION MOUNTING - LEFT
-
60123-418 ...RIVET...RIVET
-
70623-072 RIVETRIVET
-
82706-277 PLATE, SUSPENSION MOUNTING - FRONTPLATE, SUSPENSION MOUNTING - FRONT
-
94606-006 FOOTREST, REAR - RIGHTFOOTREST, REAR - RIGHT
-
94606-007 FOOTREST, REAR - LEFTFOOTREST, REAR - LEFT
-
108060-486 RIVETRIVET
-
113706-280 BRACKET, SIDE SNOWFLAP - RIGHTBRACKET, SIDE SNOWFLAP - RIGHT
-
113706-281 BRACKET, SIDE SNOWFLAP - LEFTBRACKET, SIDE SNOWFLAP - LEFT
-
124606-115 SNOWFLAP, SIDESNOWFLAP, SIDE
-
132706-971 RETAINER, SIDE SNOWFLAPRETAINER, SIDE SNOWFLAP
-
148060-508 RIVETRIVET
-
154606-283 ROLL, TUNNELROLL, TUNNEL
-
164606-306 ROLL, TUNNEL - REAR - RIGHTROLL, TUNNEL - REAR - RIGHT
-
164606-307 ROLL, TUNNEL - REAR - LEFTROLL, TUNNEL - REAR - LEFT
-
174606-156 HITCH, PINTLEHITCH, PINTLE
-
188050-272 WASHERWASHER
-
191623-248 SCREW, CAPSCREW, CAP
-
208017-580 SCREW, MACHINESCREW, MACHINE
-
218050-217 WASHERWASHER
-
225606-325 SNOWFLAPSNOWFLAP
-
235611-852 DECAL, WARNING - FRENCHDECAL, WARNING - FRENCH
-
245611-853 DECAL, WARNING - ENGLISHDECAL, WARNING - ENGLISH
-
256611-688 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
256611-689 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
264606-430 PAD, TOOLBOXPAD, TOOLBOX
-
270617-536 FOAM, SEAT RISERFOAM, SEAT RISER
-
283706-342 PLATE, SEAT RISER - RIGHTPLATE, SEAT RISER - RIGHT
-
283706-343 PLATE, SEAT RISER - LEFTPLATE, SEAT RISER - LEFT
-
297611-834 DECAL, TUNNEL RISERDECAL, TUNNEL RISER
-
308060-706 RIVETRIVET
-
312606-815 BRACKET, RISER REINFORCEMENTBRACKET, RISER REINFORCEMENT
-
323706-140 COVER, LOUVER - RIGHTCOVER, LOUVER - RIGHT
-
323706-141 COVER, LOUVER - LEFTCOVER, LOUVER - LEFT
-
338060-504 RIVETRIVET
-
343606-951 BRACKET, HINGE REINFORCEMENTBRACKET, HINGE REINFORCEMENT
-
350623-579 HINGE, SEATHINGE, SEAT
-
363706-341 PLATE, SEAT RISER - REARPLATE, SEAT RISER - REAR
-
374606-113 GROMMETGROMMET
-
382606-924 SEAL, SEAT-BASESEAL, SEAT-BASE
-
393606-960 SEAL, SEAT-BASESEAL, SEAT-BASE
-
401623-241 RIVETRIVET
