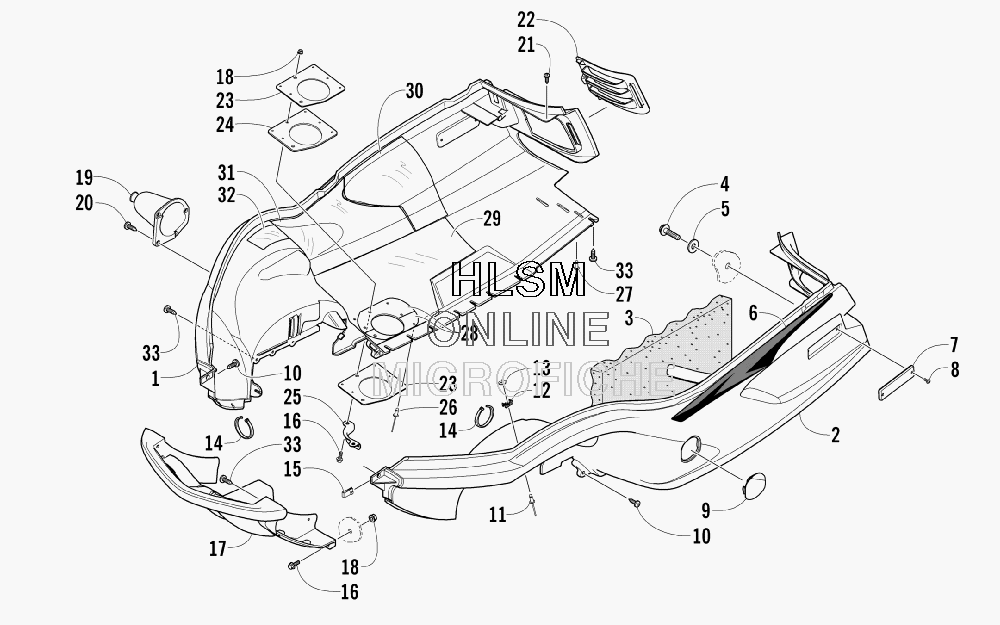

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Z 570 (ORANGE) - 2007 года выпуска`
-
№АртикулНазвание
-
11706-846 BELLY PAN - RIGHT - BLACKBELLY PAN - RIGHT - BLACK
-
21706-141 BELLY PAN - LEFT - BLACKBELLY PAN - LEFT - BLACK
-
30617-315 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
40623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50623-184 WASHERWASHER
-
67611-312 DECAL, BELLY PAN - RIGHTDECAL, BELLY PAN - RIGHT
-
67611-313 DECAL, BELLY PAN - LEFTDECAL, BELLY PAN - LEFT
-
70606-526 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
91606-767 PANEL, CLUTCH ACCESS - BLACKPANEL, CLUTCH ACCESS - BLACK
-
100623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
118060-506 RIVETRIVET
-
120623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
130123-149 WASHERWASHER
-
140123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
150623-427 NUT, UNUT, U
-
168020-040 SCREW, CAPSCREW, CAP
-
171606-949 BUMPER, FRONTBUMPER, FRONT
-
188047-366 NUT, LOCKNUT, LOCK
-
190605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
190605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
201623-429 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
221606-044 LOUVER, AIR-INTAKE - RIGHT - BLACKLOUVER, AIR-INTAKE - RIGHT - BLACK
-
221606-045 LOUVER, AIR-INTAKE - LEFT - BLACKLOUVER, AIR-INTAKE - LEFT - BLACK
-
230712-939 SHIELD, EXHAUSTSHIELD, EXHAUST
-
241612-514 SEAL, EXHAUSTSEAL, EXHAUST
-
250712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
268060-508 RIVETRIVET
-
278061-508 RIVETRIVET
-
280619-206 TAPE, FOILTAPE, FOIL
-
292606-374 FOIL, PROTECTIVE - LOWER REARFOIL, PROTECTIVE - LOWER REAR
-
302606-375 FOIL, PROTECTIVE - UPPER REARFOIL, PROTECTIVE - UPPER REAR
-
312606-376 FOIL, PROTECTIVE - LOWER FRONTFOIL, PROTECTIVE - LOWER FRONT
-
322606-387 FOIL, PROTECTIVE - UPPER FRONTFOIL, PROTECTIVE - UPPER FRONT
-
331623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
