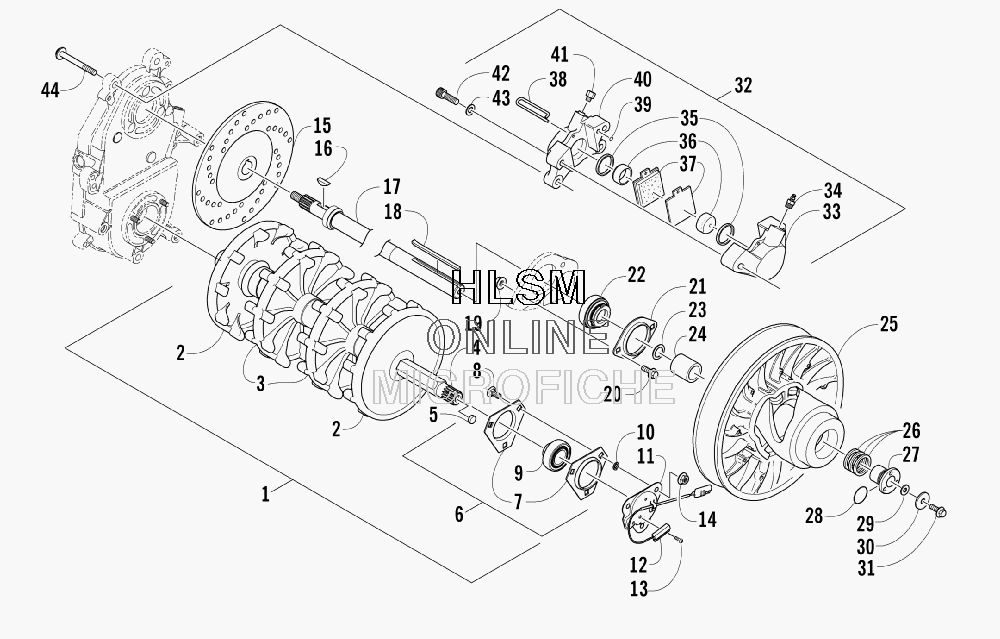

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat T660 TURBO TOURING (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
10728-117 TRACK DRIVE ASSEMBLY (INC. 2-10)TRACK DRIVE ASSEMBLY (INC. 2-10)
-
21602-203 ...SPROCKET, DRIVE - OUTER...SPROCKET, DRIVE - OUTER
-
31602-507 ...SPROCKET, DRIVE - INNER...SPROCKET, DRIVE - INNER
-
41602-585 ...DRIVESHAFT...DRIVESHAFT
-
50630-167 ...MAGNET, DISC...MAGNET, DISC
-
60702-567 ...PLATE, FLANGE - BEARING ASSEMBLY (INC. 7-10)...PLATE, FLANGE - BEARING ASSEMBLY (INC. 7-10)
-
70602-198 ......PLATE, FLANGE......PLATE, FLANGE
-
88011-130 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
91602-374 ......BEARING, 1 IN.......BEARING, 1 IN.
-
100623-810 ......RING, SOLDER......RING, SOLDER
-
113606-244 BRACKET, SENSORBRACKET, SENSOR
-
120630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
130623-462 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
148047-426 NUT, LOCKNUT, LOCK
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-562 SHAFT, DRIVENSHAFT, DRIVEN
-
180602-170 KEYKEY
-
198047-486 NUT, LOCKNUT, LOCK
-
208020-222 SCREW, CAPSCREW, CAP
-
212602-039 PLATE, FLANGEPLATE, FLANGE
-
221602-983 BEARING, 1 IN. W/SLEEVEBEARING, 1 IN. W/SLEEVE
-
230623-118 WASHER,FLAT-1.00 X1.43 X.030WASHER,FLAT-1.00 X1.43 X.030
-
230623-119 WASHER,FLAT-1.00 X1.43 X.075WASHER,FLAT-1.00 X1.43 X.075
-
242604-713 SPACER, CLUTCHSPACER, CLUTCH
-
250726-265 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260648-714 WASHER, DRIVEN .090 THICKWASHER, DRIVEN .090 THICK
-
260648-715 WASHER, DRIVEN .030 THICKWASHER, DRIVEN .030 THICK
-
260648-716 WASHER, DRIVEN .060 THICKWASHER, DRIVEN .060 THICK
-
270648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
280648-441 O-RINGO-RING
-
290123-053 WASHERWASHER
-
300123-260 WASHERWASHER
-
311623-561 SCREW, CAPSCREW, CAP
-
320602-829 CALIPER, BRAKE - ASSEMBLY (INC. 33-43)CALIPER, BRAKE - ASSEMBLY (INC. 33-43)
-
340602-707 ...SCREW, BLEED - ASSEMBLY...SCREW, BLEED - ASSEMBLY
-
350602-583 ...O-RING...O-RING
-
360602-708 ...PISTON...PISTON
-
370702-229 ...PAD, BRAKE - SET (INC. 38)...PAD, BRAKE - SET (INC. 38)
-
380602-706 ......PIN, RETAINING......PIN, RETAINING
-
390602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
410602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
428005-677 ...SCREW, CAP...SCREW, CAP
-
438050-272 ...WASHER...WASHER
-
441623-558 SCREW, CAPSCREW, CAP
