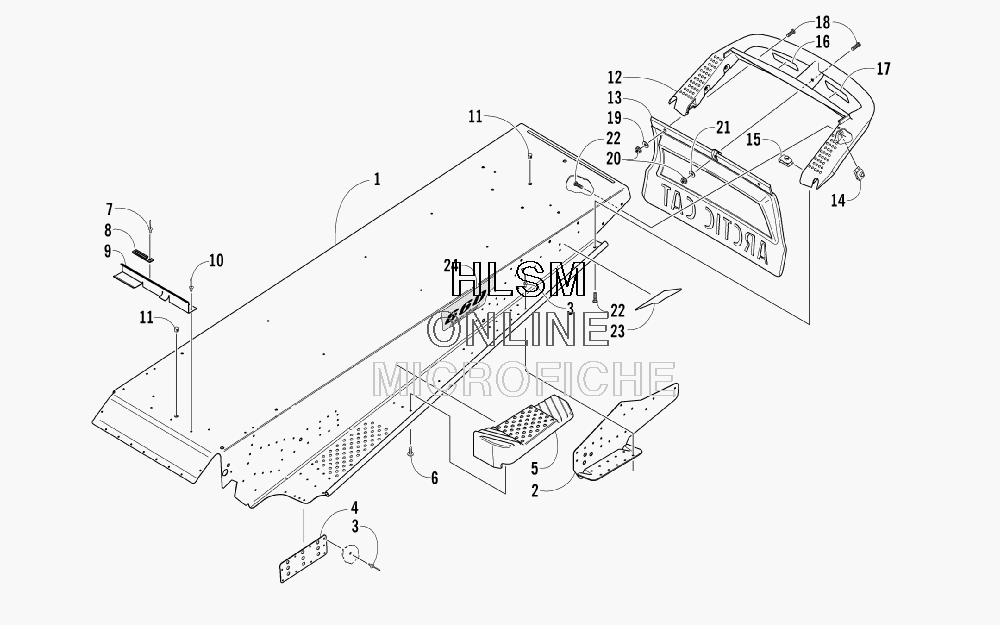

TUNNEL AND REAR BUMPER для Arctic Cat PANTHER 660 TOURING - 2007 года выпуска
-
№АртикулНазвание
-
12718-035 TUNNEL ASSEMBLY (INC. 2-4)TUNNEL ASSEMBLY (INC. 2-4)
-
20716-868 ...BRACKET, SUSPENSION MOUNTING - RIGHT...BRACKET, SUSPENSION MOUNTING - RIGHT
-
20716-869 ...BRACKET, SUSPENSION MOUNTING - LEFT...BRACKET, SUSPENSION MOUNTING - LEFT
-
30623-072 ...RIVET,SOLID ALUM-156 X370...RIVET,SOLID ALUM-156 X370
-
30123-418 ...RIVET, SOLID ALUM-.156 X.312...RIVET, SOLID ALUM-.156 X.312
-
42706-116 ...PLATE, SUSPENSION MOUNTING - FRONT...PLATE, SUSPENSION MOUNTING - FRONT
-
51606-478 FOOTREST, REAR - RIGHTFOOTREST, REAR - RIGHT
-
51606-479 FOOTREST, REAR - LEFTFOOTREST, REAR - LEFT
-
60623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
78060-506 RIVETRIVET
-
83002-964 CLAMP, WIRECLAMP, WIRE
-
90707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
100623-166 RIVETRIVET
-
110623-562 PLUG, HOLEPLUG, HOLE
-
121606-200 BUMPER, REARBUMPER, REAR
-
131606-507 SNOWFLAPSNOWFLAP
-
140623-771 NUT, UNUT, U
-
150623-427 NUT, UNUT, U
-
165611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
175611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
188017-580 SCREW, MACHINESCREW, MACHINE
-
190623-184 WASHERWASHER
-
208047-366 NUT, LOCKNUT, LOCK
-
218050-217 WASHERWASHER
-
228017-580 SCREW, MACHINESCREW, MACHINE
-
228017-581 SCREW, MACHINE (INTERNATIONAL)SCREW, MACHINE (INTERNATIONAL)
-
236611-688 DECAL, REFLECTOR - REAR RIGHTDECAL, REFLECTOR - REAR RIGHT
-
236611-689 DECAL, REFLECTOR - REAR LEFTDECAL, REFLECTOR - REAR LEFT
-
247611-422 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
247611-423 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
