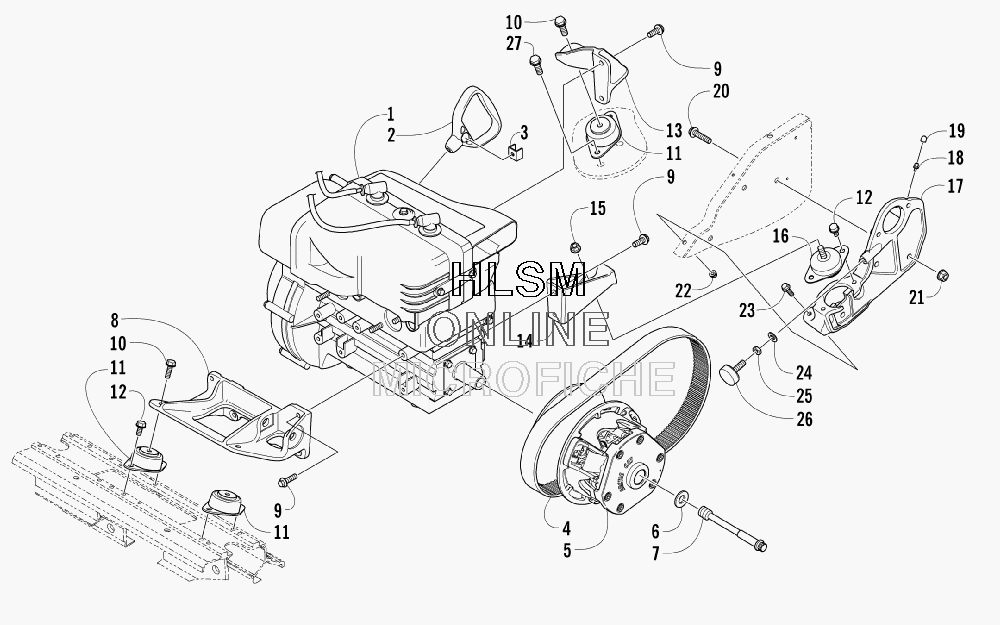

ENGINE AND RELATED PARTS для Arctic Cat PANTHER 570 (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
10662-462 ENGINE, AA56A6ENGINE, AA56A6
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-805 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40627-021 BELT, DRIVEBELT, DRIVE
-
50746-168 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
60623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
70623-804 BOLT, CLUTCHBOLT, CLUTCH
-
80745-154 BRACKET, MOUNTING - ENGINE - FRONTBRACKET, MOUNTING - ENGINE - FRONT
-
91623-553 SCREW, CAPSCREW, CAP
-
101623-560 SCREW, CAPSCREW, CAP
-
110608-347 MOUNT, ENGINEMOUNT, ENGINE
-
120623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130708-132 BRACKET, MOUNTING - ENGINE - RIGHT - REARBRACKET, MOUNTING - ENGINE - RIGHT - REAR
-
140708-133 BRACKET, MOUNTING - ENGINE - LEFT - REARBRACKET, MOUNTING - ENGINE - LEFT - REAR
-
158047-486 NUT, LOCKNUT, LOCK
-
160708-145 MOUNT, ENGINE - ASSEMBLYMOUNT, ENGINE - ASSEMBLY
-
170708-139 BRACKET, MOUNTING - ENGINE/BEARING SUPPORT (INC. 18-19)BRACKET, MOUNTING - ENGINE/BEARING SUPPORT (INC. 18-19)
-
181623-010 ...FITTING, GREASE...FITTING, GREASE
-
190623-904 ...CAP, GREASE FITTING...CAP, GREASE FITTING
-
208020-224 SCREW, CAPSCREW, CAP
-
218047-486 NUT, LOCKNUT, LOCK
-
228048-366 NUT, LOCKNUT, LOCK
-
238020-040 SCREW, CAPSCREW, CAP
-
248050-272 WASHERWASHER
-
250123-191 NUTNUT
-
260608-355 BUMPER, TORQUE - ENGINEBUMPER, TORQUE - ENGINE
-
278020-130 SCREW, CAPSCREW, CAP
