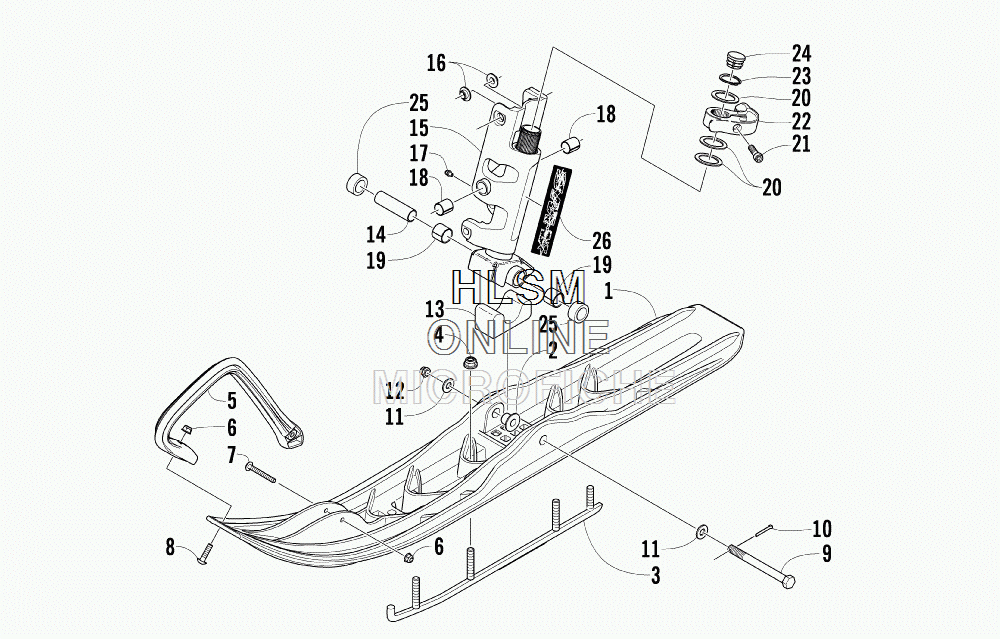

SKI AND SPINDLE ASSEMBLY для Arctic Cat M6 EFI 141 (GREEN) [S2007M6D1EUSG] - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    4639-674 CAM ARM KIT (INC. 5-8)
    CAM ARM KIT (INC. 5-8)
  • 1
    2603-586 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 2
    2603-397 INSERT, SKI
    INSERT, SKI
  • 3
    0703-871 WEARBAR
    WEARBAR
  • 4
    8047-486 NUT, LOCK
    NUT, LOCK
  • 5
    2603-598 HANDLE, PLASTIC - BLACK
    HANDLE, PLASTIC - BLACK
  • 6
    8047-366 NUT, LOCK
    NUT, LOCK
  • 7
    8017-587 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    8017-584 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    0623-776 SCREW, CAP
    SCREW, CAP
  • 10
    0123-458 PIN, COTTER
    PIN, COTTER
  • 11
    0623-728 WASHER
    WASHER
  • 12
    0123-296 NUT, LOCK
    NUT, LOCK
  • 13
    2603-553 DAMPER, SKI
    DAMPER, SKI
  • 14
    2603-548 AXLE, SPINDLE
    AXLE, SPINDLE
  • 15
    1703-630 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 16-23)
    SPINDLE, STEERING - RIGHT - PLATINUM (INC. 16-23)
  • 15
    1703-631 SPINDLE, STEERING - LEFT - PLATINUM (INC. 16-23)
    SPINDLE, STEERING - LEFT - PLATINUM (INC. 16-23)
  • 16
    0603-647 ...INSERT, SPINDLE
    ...INSERT, SPINDLE
  • 17
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 18
    0603-083 ...BEARING
    ...BEARING
  • 19
    0603-158 ...BEARING
    ...BEARING
  • 20
    1603-203 ...WASHER, THRUST
    ...WASHER, THRUST
  • 21
    8005-584 ...SCREW, CAP
    ...SCREW, CAP
  • 22
    1703-659 ...ARM, STEERING - BLACK
    ...ARM, STEERING - BLACK
  • 23
    0623-796 ...RING, RETAINING
    ...RING, RETAINING
  • 24
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 25
    1603-908 SPACER
    SPACER
  • 26
    7611-360 DECAL, "AWS" - SPINDLE - RIGHT
    DECAL, "AWS" - SPINDLE - RIGHT
  • 26
    7611-361 DECAL, "AWS" - SPINDLE - LEFT
    DECAL, "AWS" - SPINDLE - LEFT
