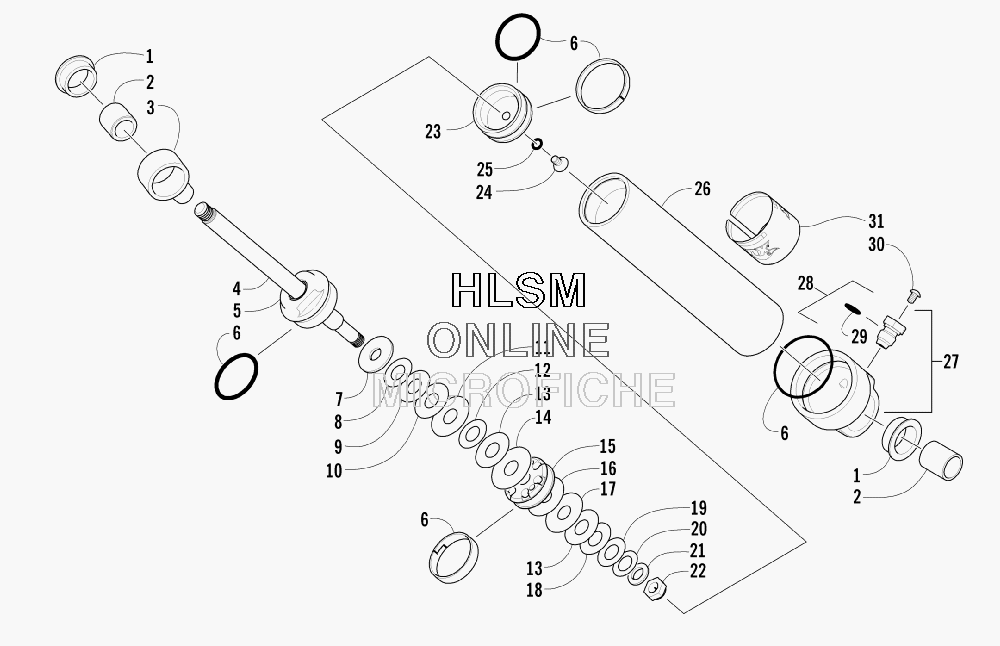

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M1000 EFI 162 (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
1704-558 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHING, SHOCKBUSHING, SHOCK
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30604-893 EYELET, SHOCKEYELET, SHOCK
-
42604-863 ROD, SHOCKROD, SHOCK
-
52604-413 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
62604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-886 VALVE, 0.900 X 0.015 IN.VALVE, 0.900 X 0.015 IN.
-
90603-887 VALVE, 1.000 X 0.015 IN.VALVE, 1.000 X 0.015 IN.
-
100603-888 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
110603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
120603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
130603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
140603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
151604-437 PISTON, 0.039 IN. - ORIFICEPISTON, 0.039 IN. - ORIFICE
-
160603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
170603-345 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
180603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
190603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
200603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
210603-389 WASHER, BACKUPWASHER, BACKUP
-
220603-301 NUT, LOCKNUT, LOCK
-
232604-816 PISTON, FLOATING - ASSEMBLYPISTON, FLOATING - ASSEMBLY
-
241604-316 SCREW, RELIEF (INC. 25)SCREW, RELIEF (INC. 25)
-
251604-425 ...O-RING...O-RING
-
262604-864 BODY, SHOCKBODY, SHOCK
-
272604-817 END CAP, SHOCK (INC. 28-29)END CAP, SHOCK (INC. 28-29)
-
280703-341 ...VALVE, PRESSURE (INC. 29)...VALVE, PRESSURE (INC. 29)
-
291604-318 ......O-RING......O-RING
-
300624-097 SCREW, VALVESCREW, VALVE
-
312604-897 DECAL, SHOCKDECAL, SHOCK
-
*4639-368 OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)
