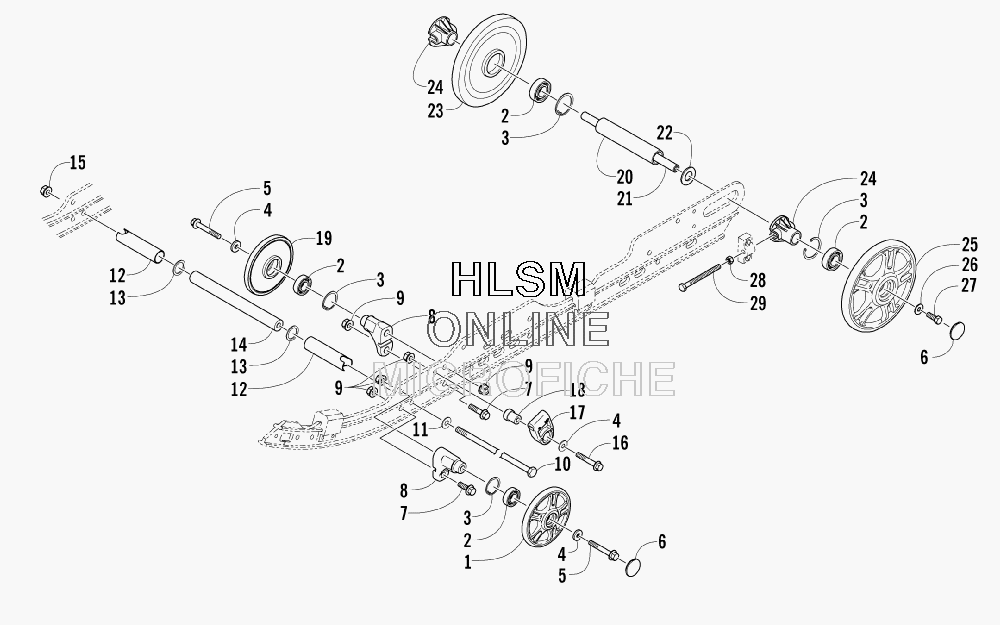

IDLER WHEEL ASSEMBLY для Arctic Cat JAGUAR Z1 1100 EFI (RED) (INTERNATIONAL) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3604-043 WHEEL, IDLER - PLATINUM (INC. TWO NO. 2-3) (BLACK)
    WHEEL, IDLER - PLATINUM (INC. TWO NO. 2-3) (BLACK)
  • 2
    3604-033 ...BEARING
    ...BEARING
  • 3
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 4
    8050-282 WASHER
    WASHER
  • 5
    8020-232 SCREW, CAP
    SCREW, CAP
  • 6
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
  • 7
    8020-224 SCREW, CAP
    SCREW, CAP
  • 8
    2604-579 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 9
    8047-486 NUT, LOCK
    NUT, LOCK
  • 10
    1623-037 SCREW, CAP
    SCREW, CAP
  • 11
    8050-272 WASHER
    WASHER
  • 12
    1604-793 SPACER, SHOCK - FRONT ARM
    SPACER, SHOCK - FRONT ARM
  • 13
    0623-912 WASHER
    WASHER
  • 14
    1604-792 AXLE
    AXLE
  • 15
    8047-490 NUT, LOCK
    NUT, LOCK
  • 16
    8020-227 SCREW, CAP
    SCREW, CAP
  • 17
    2604-516 SLIDE, SPRING
    SLIDE, SPRING
  • 18
    3604-204 BLOCK, SLIDE
    BLOCK, SLIDE
  • 19
    3604-039 WHEEL, IDLER (INC. TWO NO. 2-3)
    WHEEL, IDLER (INC. TWO NO. 2-3)
  • 20
    1604-940 SPACER, REAR WHEEL
    SPACER, REAR WHEEL
  • 21
    2604-283 AXLE, REAR
    AXLE, REAR
  • 22
    0623-921 WASHER
    WASHER
  • 23
    3604-049 WHEEL, IDLER (INC. ONE NO. 2-3)
    WHEEL, IDLER (INC. ONE NO. 2-3)
  • 24
    1704-489 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 25
    3604-055 WHEEL, IDLER - PLATINUM (INC. TWO NO. 2-3) (BLACK)
    WHEEL, IDLER - PLATINUM (INC. TWO NO. 2-3) (BLACK)
  • 26
    0623-664 WASHER
    WASHER
  • 27
    1623-545 SCREW, CAP
    SCREW, CAP
  • 28
    8042-486 NUT
    NUT
  • 29
    0623-123 SCREW, CAP
    SCREW, CAP
