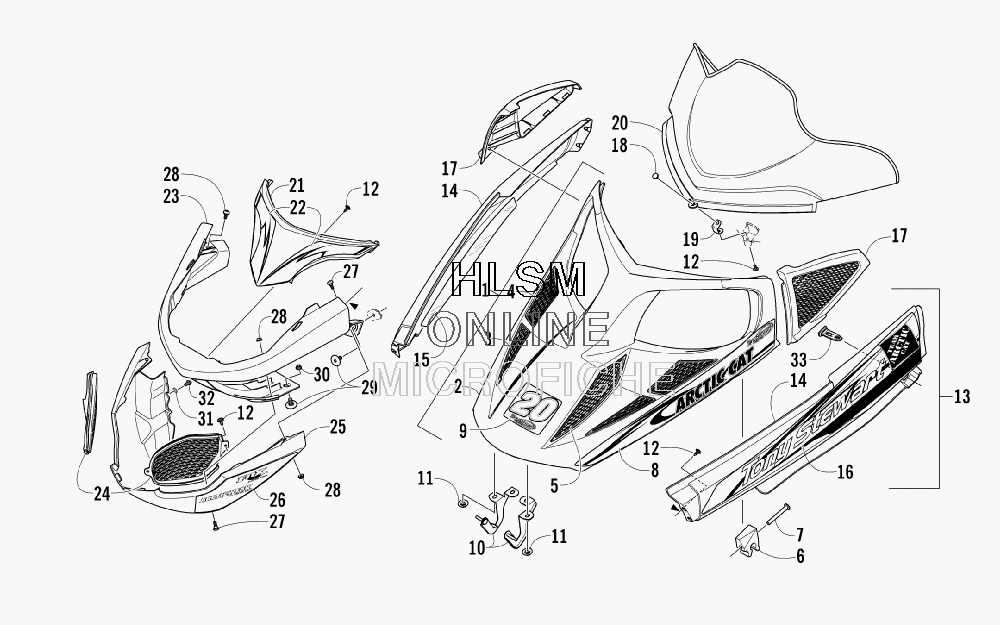

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F8 EFI SNO PRO TONY STEWART EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
12718-381 HOOD W/DECALS - ORANGE (INC. 2-9)HOOD W/DECALS - ORANGE (INC. 2-9)
-
27999-266 ...HOOD W/O DECALS - ORANGE (INC. 3-7)...HOOD W/O DECALS - ORANGE (INC. 3-7)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
-
61623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
-
71623-610 ......PIN, RETAINING......PIN, RETAINING
-
87611-786 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
87611-787 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
97611-775 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
103706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
103706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
121623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
132718-382 SPAR, FRONT W/DECALS - RIGHT (INC. 14-16)SPAR, FRONT W/DECALS - RIGHT (INC. 14-16)
-
132718-383 SPAR, FRONT W/DECALS - LEFT (INC. 14 AND 16)SPAR, FRONT W/DECALS - LEFT (INC. 14 AND 16)
-
144606-884 ...SPAR, FRONT W/O DECALS - RIGHT (INC. 15)...SPAR, FRONT W/O DECALS - RIGHT (INC. 15)
-
144606-885 ...SPAR, FRONT W/O DECALS - LEFT...SPAR, FRONT W/O DECALS - LEFT
-
154606-934 ......FOIL, SPAR - RIGHT......FOIL, SPAR - RIGHT
-
167611-790 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
167611-791 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
174606-590 BEZEL, INTAKE - RIGHT - ORANGEBEZEL, INTAKE - RIGHT - ORANGE
-
174606-591 BEZEL, INTAKE - LEFT - ORANGEBEZEL, INTAKE - LEFT - ORANGE
-
181623-677 RIVET, PLASTICRIVET, PLASTIC
-
194606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
203606-702 WINDSHIELDWINDSHIELD
-
214606-517 FASCIA, BUMPER - UPPER - ORANGEFASCIA, BUMPER - UPPER - ORANGE
-
227611-788 DECAL, BUMPER FASCIA - UPPER - RIGHTDECAL, BUMPER FASCIA - UPPER - RIGHT
-
227611-789 DECAL, BUMPER FASCIA - UPPER - LEFTDECAL, BUMPER FASCIA - UPPER - LEFT
-
234606-512 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
244606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
244606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
-
254606-569 FASCIA, BUMPER - LOWER - ORANGEFASCIA, BUMPER - LOWER - ORANGE
-
267611-792 DECAL, BUMPER FASCIA - LOWER - RIGHTDECAL, BUMPER FASCIA - LOWER - RIGHT
-
267611-793 DECAL, BUMPER FASCIA - LOWER - LEFTDECAL, BUMPER FASCIA - LOWER - LEFT
-
270423-355 SCREW, SHOULDERSCREW, SHOULDER
-
288427-602 NUT, LOCKNUT, LOCK
-
290423-130 SCREW, BODYSCREW, BODY
-
308424-602 NUTNUT
-
318053-242 WASHER, LOCKWASHER, LOCK
-
320623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
334606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
