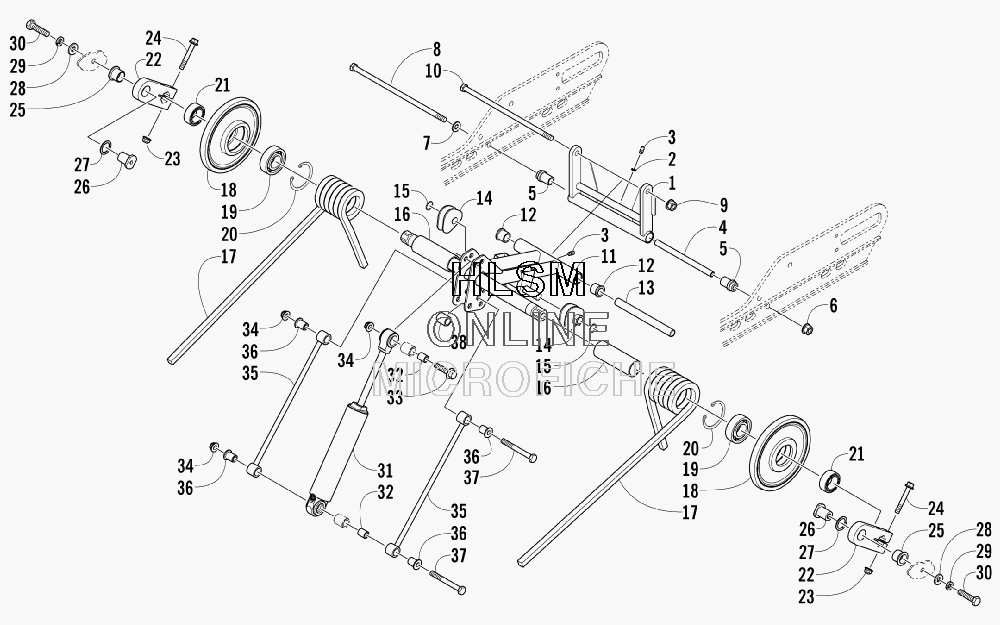

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat F8 EFI LXR (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-552 ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)
    ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)
  • 2
    1623-011 ...WASHER, GREASE FITTING
    ...WASHER, GREASE FITTING
  • 3
    1623-010 ...FITTING, GREASE - SELF-TAPPING
    ...FITTING, GREASE - SELF-TAPPING
  • 4
    2604-663 AXLE, REAR ARM - INNER
    AXLE, REAR ARM - INNER
  • 5
    2604-664 BUSHING, REAR ARM
    BUSHING, REAR ARM
  • 6
    8047-490 NUT, LOCK
    NUT, LOCK
  • 7
    8050-272 WASHER
    WASHER
  • 8
    1623-037 SCREW, CAP
    SCREW, CAP
  • 9
    8047-486 NUT, LOCK
    NUT, LOCK
  • 10
    1623-627 SCREW, CAP
    SCREW, CAP
  • 11
    1704-699 ARM, IDLER - BLACK (INC. 12 AND ONE NO. 3) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    ARM, IDLER - BLACK (INC. 12 AND ONE NO. 3) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 12
    1604-100 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 13
    2604-370 AXLE, STEEL
    AXLE, STEEL
  • 14
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT
    BLOCK, SPRING ADJUSTER - RIGHT
  • 14
    1604-205 BLOCK, SPRING ADJUSTER - LEFT
    BLOCK, SPRING ADJUSTER - LEFT
  • 15
    0623-138 RING, RETAINING (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    RING, RETAINING (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 16
    3604-288 SLEEVE, SPRING (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    SLEEVE, SPRING (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 17
    1704-504 SPRING, SUSPENSION - RIGHT
    SPRING, SUSPENSION - RIGHT
  • 17
    1704-505 SPRING, SUSPENSION - LEFT
    SPRING, SUSPENSION - LEFT
  • 18
    3604-264 WHEEL, IDLER (INC. 19-20) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    WHEEL, IDLER (INC. 19-20) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 19
    3604-257 ...BEARING
    ...BEARING
  • 20
    3604-256 ...RING, RETAINING
    ...RING, RETAINING
  • 21
    3604-289 SPACER, PIVOT - OFFSET ARM (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    SPACER, PIVOT - OFFSET ARM (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 22
    1704-627 ARM, OFFSET (INC. 23-25) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
    ARM, OFFSET (INC. 23-25) (INCLUDED IN IDLER ARM KIT LISTED BELOW)
  • 23
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 24
    8408-860 ...SCREW, CAP
    ...SCREW, CAP
  • 25
    3604-028 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 26
    3604-158 AXLE, POWDER METAL
    AXLE, POWDER METAL
  • 27
    1604-187 WASHER, PIVOT - IDLER ARM
    WASHER, PIVOT - IDLER ARM
  • 28
    0623-044 WASHER
    WASHER
  • 29
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 30
    8002-224 SCREW, CAP
    SCREW, CAP
  • 31
    1704-569 SHOCK ABSORBER - REAR ARM
    SHOCK ABSORBER - REAR ARM
  • 32
    1604-139 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 33
    8020-226 SCREW, CAP
    SCREW, CAP
  • 34
    8041-486 NUT, LOCK
    NUT, LOCK
  • 35
    0704-350 LINK, REAR SHOCK - BLACK
    LINK, REAR SHOCK - BLACK
  • 36
    1604-498 AXLE, LINK - FLANGED
    AXLE, LINK - FLANGED
  • 37
    8002-233 SCREW, CAP
    SCREW, CAP
  • 38
    0704-854 SPACER, SHOCK LINK - BLACK
    SPACER, SHOCK LINK - BLACK
  • 1704-702 IDLER ARM KIT
    IDLER ARM KIT
