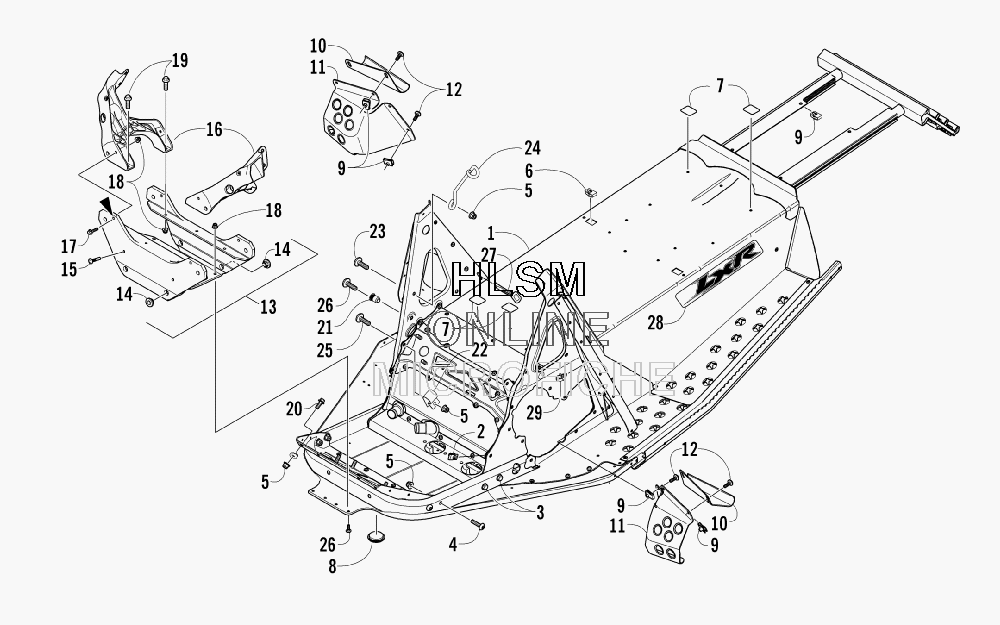

CHASSIS ASSEMBLY для Arctic Cat F6 EFI LXR (ORANGE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-102 CHASSIS - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)
    CHASSIS - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)
  • 2
    1623-640 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 3
    1623-428 ...SCREW, CAP
    ...SCREW, CAP
  • 4
    8476-835 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 5
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 6
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 7
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 8
    1623-625 PLUG
    PLUG
  • 9
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 10
    3606-920 BRACKET, TOE HOOK - RIGHT
    BRACKET, TOE HOOK - RIGHT
  • 10
    3606-921 BRACKET, TOE HOOK - LEFT
    BRACKET, TOE HOOK - LEFT
  • 11
    3606-710 SHIELD, TOE - RIGHT
    SHIELD, TOE - RIGHT
  • 11
    3606-711 SHIELD, TOE - LEFT
    SHIELD, TOE - LEFT
  • 12
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0707-977 BRACKET, MOUNTING - FRONT SUSPENSION (INC. 14-15)
    BRACKET, MOUNTING - FRONT SUSPENSION (INC. 14-15)
  • 14
    0605-763 ...BUSHING
    ...BUSHING
  • 15
    1623-443 ...BOLT, RIBBED
    ...BOLT, RIBBED
  • 16
    0607-806 FRAME, MOUNTING - SHOCK - UPPER - RIGHT
    FRAME, MOUNTING - SHOCK - UPPER - RIGHT
  • 16
    0607-807 FRAME, MOUNTING - SHOCK - UPPER - LEFT
    FRAME, MOUNTING - SHOCK - UPPER - LEFT
  • 17
    8408-625 SCREW, CAP
    SCREW, CAP
  • 18
    8427-602 NUT, LOCK
    NUT, LOCK
  • 19
    8408-620 SCREW, CAP
    SCREW, CAP
  • 20
    8408-820 SCREW, CAP
    SCREW, CAP
  • 21
    0423-391 INSERT
    INSERT
  • 22
    1623-080 CLAMP
    CLAMP
  • 23
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0708-532 GUIDE, ROPE
    GUIDE, ROPE
  • 25
    8476-830 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    4606-454 STRAP, HOLD-DOWN - RIGHT
    STRAP, HOLD-DOWN - RIGHT
  • 27
    4606-455 STRAP, HOLD-DOWN - LEFT
    STRAP, HOLD-DOWN - LEFT
  • 28
    7611-707 DECAL, TUNNEL (GREEN)
    DECAL, TUNNEL (GREEN)
  • 28
    7611-724 DECAL, TUNNEL (BLACK)
    DECAL, TUNNEL (BLACK)
  • 28
    7611-725 DECAL, TUNNEL (ORANGE)
    DECAL, TUNNEL (ORANGE)
  • 29
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
