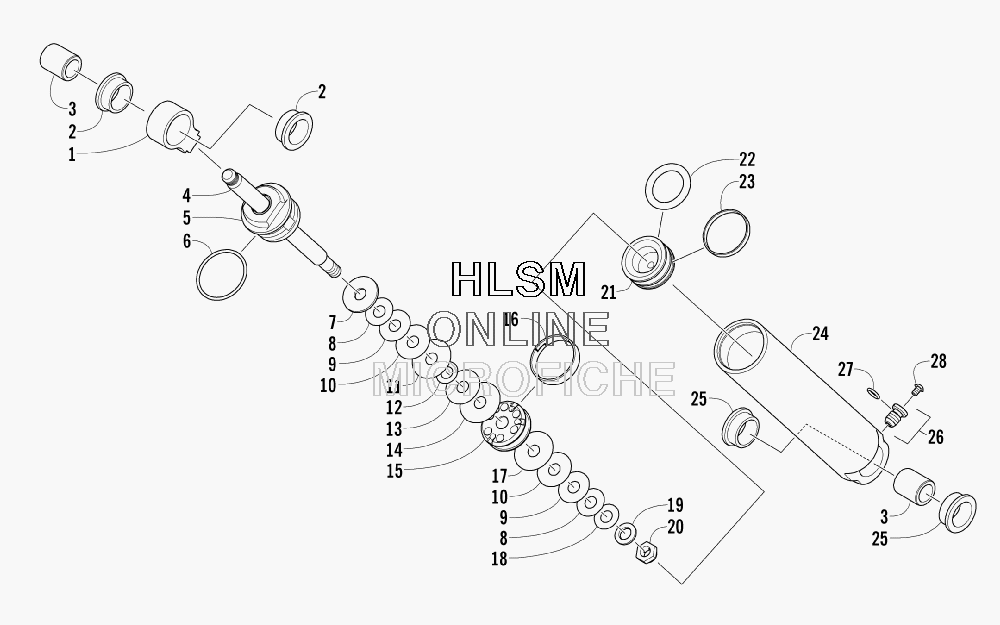

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F6 EFI LXR (GREEN) - 2007 года выпуска`
-
№АртикулНазвание
-
1704-569 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11603-503 EYELET, SHOCKEYELET, SHOCK
-
21604-262 BUSHING, SHOCKBUSHING, SHOCK
-
31604-397 SLEEVE, EYELETSLEEVE, EYELET
-
42604-599 ROD, SHOCKROD, SHOCK
-
51703-452 END CAP, SHOCK W/BLEED (INC. 6)END CAP, SHOCK W/BLEED (INC. 6)
-
61604-271 ...O-RING...O-RING
-
71604-272 WASHER, TOP OUTWASHER, TOP OUT
-
82603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
92603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
102603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
112603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
122603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
132603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
142603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
151603-731 PISTON, 0.052 IN. - ORIFICEPISTON, 0.052 IN. - ORIFICE
-
161604-274 STRAP, PISTON - TEFLONSTRAP, PISTON - TEFLON
-
172603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
182603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
191604-273 WASHER, BACKUPWASHER, BACKUP
-
200623-696 NUT, LOCKNUT, LOCK
-
210704-791 PISTON, FLOATING (INC. 22-23)PISTON, FLOATING (INC. 22-23)
-
222604-152 ...O-RING...O-RING
-
232604-153 ...STRAP, PISTON - TEFLON...STRAP, PISTON - TEFLON
-
242604-598 BODY, SHOCKBODY, SHOCK
-
252604-164 BUSHING, SHOCKBUSHING, SHOCK
-
262604-649 VALVE, PRESSURE (INC. 27)VALVE, PRESSURE (INC. 27)
-
272604-162 ...O-RING...O-RING
-
280624-433 SCREW, VALVESCREW, VALVE
-
*4639-366 OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)OIL, GAS SHOCK - 1 QT (NOT ILLUSTRATED)
