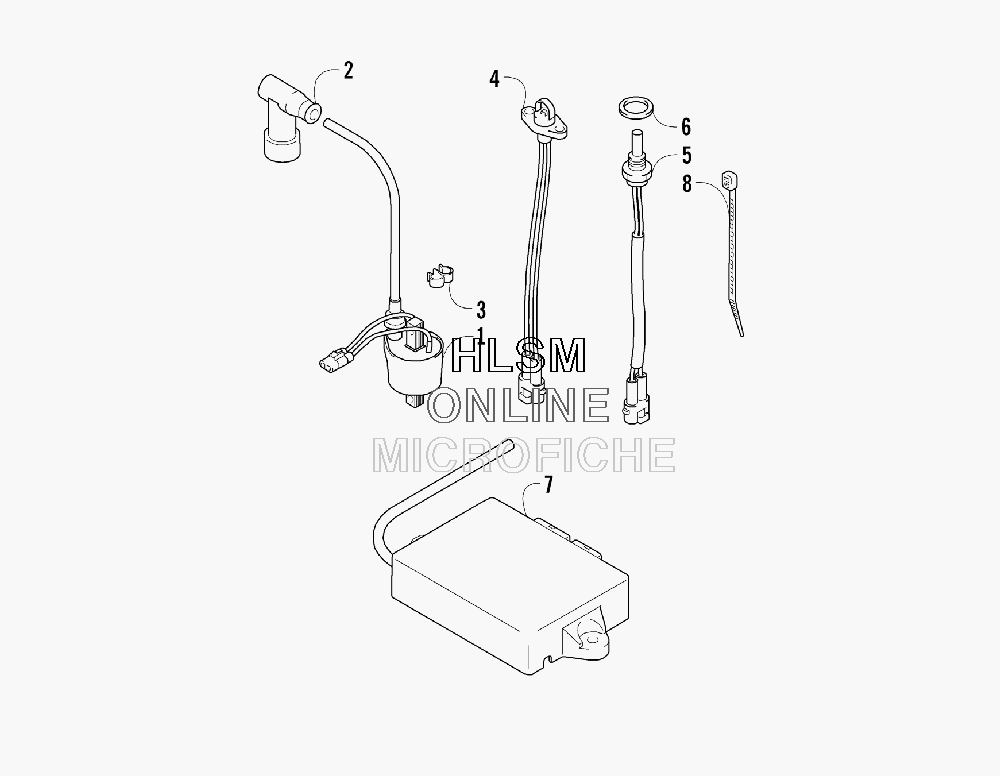

ELECTRICAL для Arctic Cat F1000 EFI LXR (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
13007-548 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
33005-387 CLIPCLIP
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53007-321 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
73007-331 ECU L (CIRCLE)ECU L (CIRCLE)
-
73007-332 ECU N (SQUARE)ECU N (SQUARE)
-
73007-333 ECU S (TRIANGLE)ECU S (TRIANGLE)
-
83005-237 CABLE TIECABLE TIE
