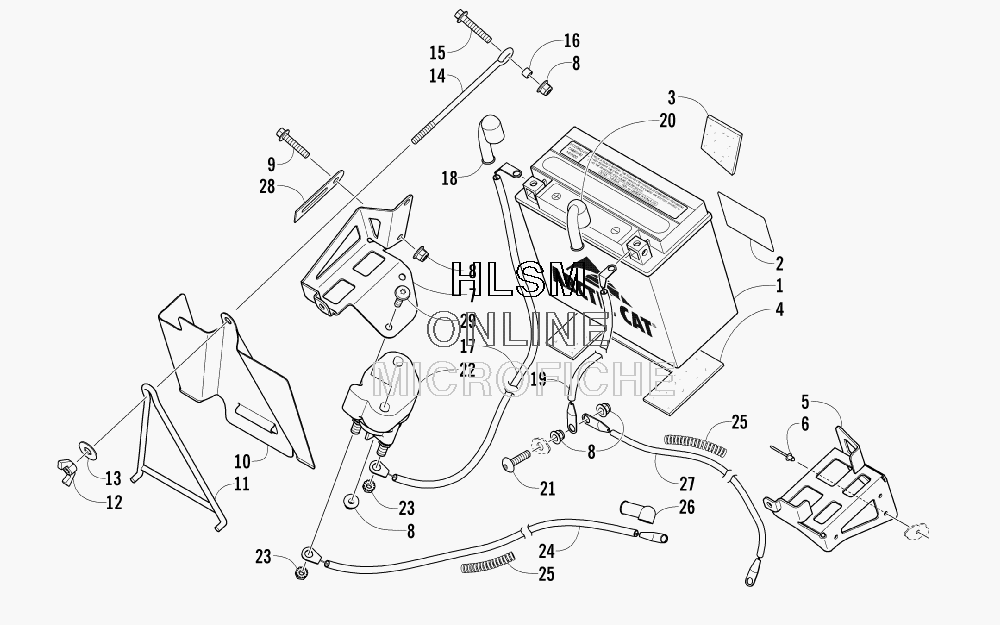

BATTERY AND TRAY ASSEMBLY для Arctic Cat F1000 EFI LXR (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0645-480 BATTERY (INC. 2)
    BATTERY (INC. 2)
  • 2
    0645-430 ...DECAL, WARNING - BATTERY
    ...DECAL, WARNING - BATTERY
  • 3
    0617-527 PAD, FOAM - BATTERY - SIDE
    PAD, FOAM - BATTERY - SIDE
  • 4
    0617-526 PAD, FOAM - BATTERY - BOTTOM
    PAD, FOAM - BATTERY - BOTTOM
  • 5
    0745-301 TRAY, BATTERY - INNER
    TRAY, BATTERY - INNER
  • 6
    8060-486 RIVET
    RIVET
  • 7
    0745-302 TRAY, BATTERY - OUTER
    TRAY, BATTERY - OUTER
  • 8
    8427-602 NUT, LOCK
    NUT, LOCK
  • 9
    8408-630 SCREW, CAP
    SCREW, CAP
  • 10
    0645-468 SHIELD, HEAT - BATTERY
    SHIELD, HEAT - BATTERY
  • 11
    0745-262 ROD, BATTERY - HEAT SHIELD
    ROD, BATTERY - HEAT SHIELD
  • 12
    0423-716 NUT, WING
    NUT, WING
  • 13
    8050-217 WASHER
    WASHER
  • 14
    0745-263 ROD, BATTERY - TOP
    ROD, BATTERY - TOP
  • 15
    8408-635 SCREW, CAP
    SCREW, CAP
  • 16
    0645-479 SPACER, BATTERY ROD
    SPACER, BATTERY ROD
  • 17
    0645-485 CABLE, BATTERY/SOLENOID (INC. 18 AND 25)
    CABLE, BATTERY/SOLENOID (INC. 18 AND 25)
  • 18
    0645-521 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 19
    0645-528 CABLE, BATTERY/GROUND (INC. 20)
    CABLE, BATTERY/GROUND (INC. 20)
  • 20
    0645-520 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 21
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0445-058 SOLENOID, STARTER RELAY
    SOLENOID, STARTER RELAY
  • 23
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 24
    0645-517 CABLE, SOLENOID/STARTER (INC. 25-26)
    CABLE, SOLENOID/STARTER (INC. 25-26)
  • 25
    0619-342 ...CONDUIT
    ...CONDUIT
  • 26
    0645-522 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 27
    0645-516 CABLE, STARTER-TO-GROUND (INC. 25)
    CABLE, STARTER-TO-GROUND (INC. 25)
  • 28
    3002-964 CLIP, WIRE
    CLIP, WIRE
  • 29
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
