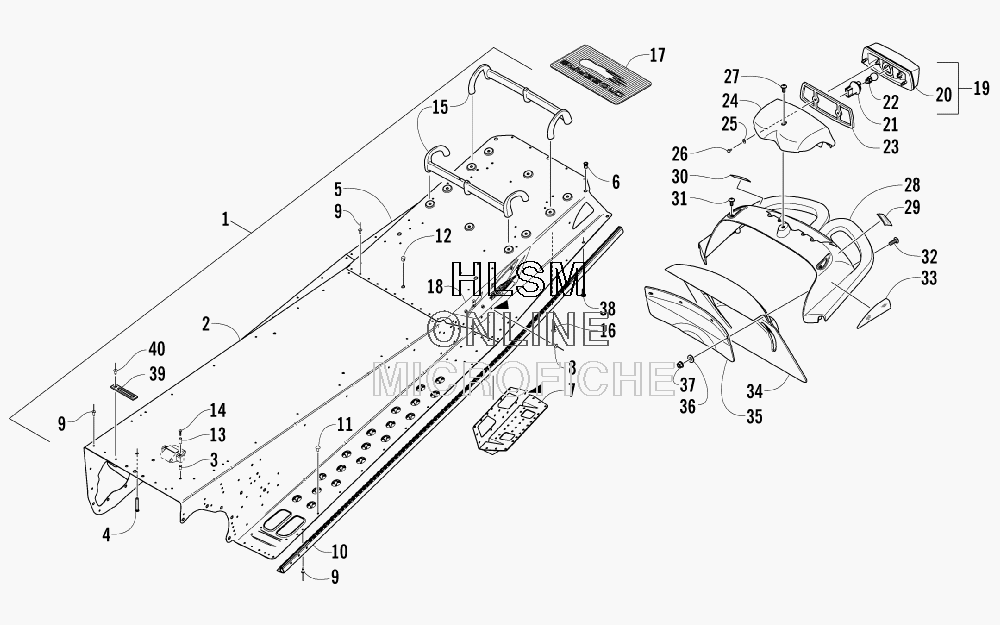

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat CROSSFIRE 500 EFI (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
1707-121 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12718-049 TUNNEL ASSEMBLY (INC. 2-9)TUNNEL ASSEMBLY (INC. 2-9)
-
22718-056 ...TUNNEL, FRONT (INC. 3-4)...TUNNEL, FRONT (INC. 3-4)
-
31623-127 ......INSERT......INSERT
-
41623-657 ......INSERT......INSERT
-
52718-057 ...TUNNEL, REAR (INC. 6)...TUNNEL, REAR (INC. 6)
-
60623-582 ......INSERT......INSERT
-
73706-152 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
73706-153 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
88061-706 ...RIVET...RIVET
-
98060-504 ...RIVET...RIVET
-
103706-290 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
103706-687 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
110123-418 RIVET, SOLID ALUM-.156 X.312RIVET, SOLID ALUM-.156 X.312
-
118060-486 RIVET, BLIND-DH SS54 ZINC (OPTIONAL)RIVET, BLIND-DH SS54 ZINC (OPTIONAL)
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131623-045 SPACERSPACER
-
141623-671 SCREW, MACHINESCREW, MACHINE
-
153606-584 RACKRACK
-
161623-499 SCREW, MACHINESCREW, MACHINE
-
174606-149 PAD, RUBBERPAD, RUBBER
-
187611-252 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
187611-253 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
190509-022 TAILLIGHT ASSEMBLY (INC. 20-22)TAILLIGHT ASSEMBLY (INC. 20-22)
-
200509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
210409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
220409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
234606-382 SPACER, TAILLIGHTSPACER, TAILLIGHT
-
243606-747 HOUSING, TAILLIGHT MOUNTINGHOUSING, TAILLIGHT MOUNTING
-
258050-127 WASHERWASHER
-
260623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
271623-513 SCREW, MACHINESCREW, MACHINE
-
283606-431 BUMPER, REARBUMPER, REAR
-
295611-853 DECAL, WARNING TOWING (ENGLISH)DECAL, WARNING TOWING (ENGLISH)
-
305611-852 DECAL, WARNING TOWING (FRENCH)DECAL, WARNING TOWING (FRENCH)
-
311623-501 SCREW, MACHINESCREW, MACHINE
-
328017-581 SCREW, MACHINESCREW, MACHINE
-
338611-010 DECAL, REFLECTOR - RED - RIGHTDECAL, REFLECTOR - RED - RIGHT
-
338611-011 DECAL, REFLECTOR - RED - LEFTDECAL, REFLECTOR - RED - LEFT
-
344606-227 SNOWFLAPSNOWFLAP
-
353606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
360623-184 WASHERWASHER
-
378047-366 NUT, LOCKNUT, LOCK
-
381623-022 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
393002-964 CLAMP, WIRECLAMP, WIRE
-
408060-506 RIVETRIVET
