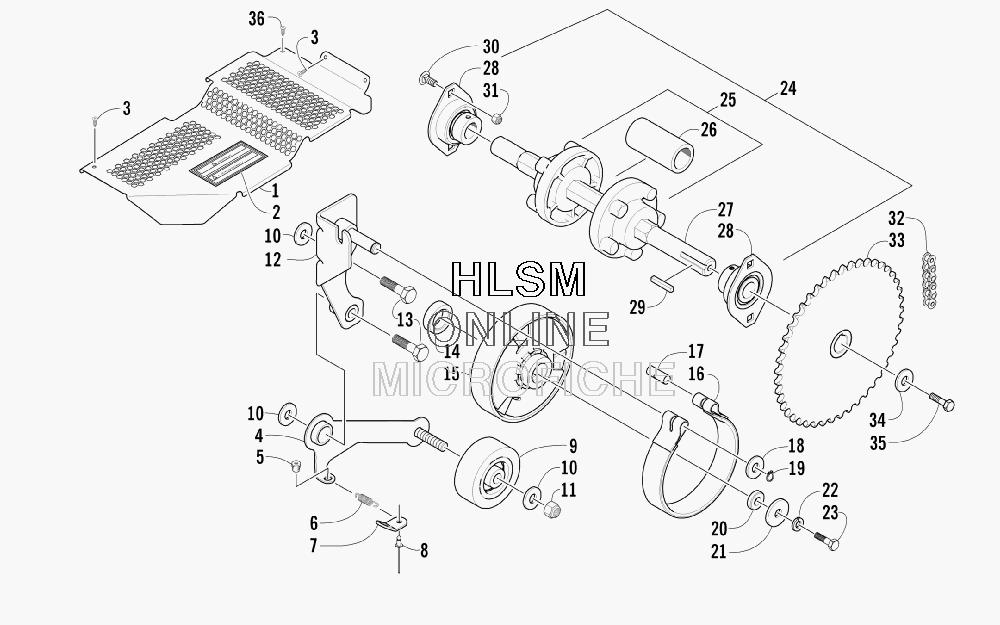

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat AC 120 (GREEN) - 2007 года выпуска`
-
№АртикулНазвание
-
10712-915 SHIELD, CLUTCH/BRAKE/MUFFLERSHIELD, CLUTCH/BRAKE/MUFFLER
-
23611-754 DECAL, WARNING - GUARDDECAL, WARNING - GUARD
-
30623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40702-376 TENSIONER, CHAINTENSIONER, CHAIN
-
50623-868 BUSHING, SNAPBUSHING, SNAP
-
61612-178 SPRING, TENSIONER - CHAINSPRING, TENSIONER - CHAIN
-
72606-021 TAB, SPRING RETAINERTAB, SPRING RETAINER
-
88060-484 RIVETRIVET
-
91602-065 ROLLER, CHAIN TENSIONERROLLER, CHAIN TENSIONER
-
108050-247 WASHERWASHER
-
118041-426 NUT, LOCKNUT, LOCK
-
120702-360 BRACKET, BRAKEBRACKET, BRAKE
-
131623-548 SCREW, CAPSCREW, CAP
-
141602-026 SPACER, CLUTCH - INNERSPACER, CLUTCH - INNER
-
151602-020 CLUTCH, CENTRIFUGALCLUTCH, CENTRIFUGAL
-
161602-021 BAND, BRAKE (INC. 17)BAND, BRAKE (INC. 17)
-
171602-049 ...PIN, RETAINER - BRAKE CABLE...PIN, RETAINER - BRAKE CABLE
-
188050-277 WASHERWASHER
-
190623-821 RING, SNAPRING, SNAP
-
201602-027 SPACER, CLUTCH - OUTERSPACER, CLUTCH - OUTER
-
210123-260 WASHERWASHER
-
228051-242 WASHER, LOCKWASHER, LOCK
-
238004-132 SCREW, CAPSCREW, CAP
-
240728-167 TRACK DRIVE ASSEMBLY (INC. 25-28)TRACK DRIVE ASSEMBLY (INC. 25-28)
-
251602-117 ...SPROCKET, TRACK DRIVE...SPROCKET, TRACK DRIVE
-
261602-148 ...SPACER...SPACER
-
271602-850 ...SHAFT, TRACK DRIVE SPROCKET...SHAFT, TRACK DRIVE SPROCKET
-
281602-992 ...BEARING, CHAIN SPROCKET...BEARING, CHAIN SPROCKET
-
290623-823 KEYKEY
-
308011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
318047-426 NUT, LOCKNUT, LOCK
-
321602-960 CHAIN - 76PCHAIN - 76P
-
331602-975 SPROCKET, CHAINSPROCKET, CHAIN
-
340123-019 WASHERWASHER
-
351623-549 SCREW, CAPSCREW, CAP
-
361623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
