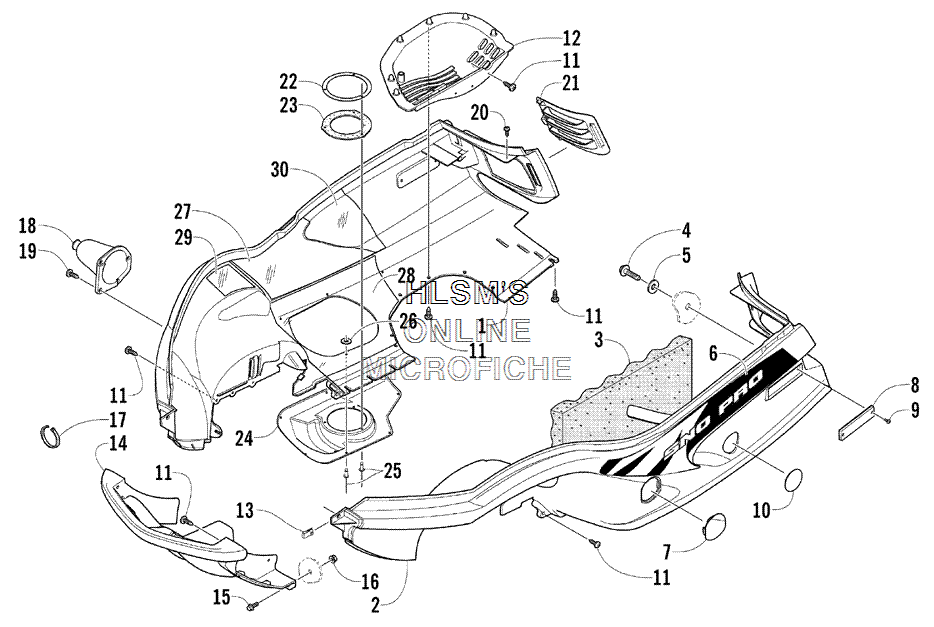

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat ZR 900 EFI Sno Pro (BLACK) - 2006 года выпуска`
-
№АртикулНазвание
-
12706-396 BELLY PAN - RIGHTBELLY PAN - RIGHT
-
22706-505 BELLY PAN - LEFTBELLY PAN - LEFT
-
30617-449 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
40623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50623-184 WASHER, FLATWASHER, FLAT
-
67611-132 DECAL, BELLY PAN - UPPER RIGHTDECAL, BELLY PAN - UPPER RIGHT
-
67611-133 DECAL, BELLY PAN - UPPER LEFTDECAL, BELLY PAN - UPPER LEFT
-
71606-767 PANEL, ACCESS - DRIVE CLUTCHPANEL, ACCESS - DRIVE CLUTCH
-
80606-526 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100623-600 PANEL, ACCESS - DRIVEN CLUTCHPANEL, ACCESS - DRIVEN CLUTCH
-
110623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
122706-395 GUARD, BRAKEGUARD, BRAKE
-
130623-427 NUT, UNUT, U
-
141606-949 BUMPER, FRONTBUMPER, FRONT
-
158020-041 SCREW, CAPSCREW, CAP
-
168047-366 NUT, LOCKNUT, LOCK
-
170123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
180605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
180605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
190623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
211606-044 LOUVER, AIR-INTAKE - RIGHTLOUVER, AIR-INTAKE - RIGHT
-
211606-045 LOUVER, AIR-INTAKE - LEFTLOUVER, AIR-INTAKE - LEFT
-
220712-917 PLATE, SEAL - EXHAUST OUTLETPLATE, SEAL - EXHAUST OUTLET
-
231612-372 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
241612-450 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
258060-510 RIVETRIVET
-
260123-149 WASHER, FLATWASHER, FLAT
-
272606-376 FOIL, PROTECTIVE - UPPER FRONTFOIL, PROTECTIVE - UPPER FRONT
-
282606-374 FOIL, PROTECTIVE - LOWER REARFOIL, PROTECTIVE - LOWER REAR
-
292606-387 FOIL, PROTECTIVE - LOWER FRONTFOIL, PROTECTIVE - LOWER FRONT
-
302606-375 FOIL, PROTECTIVE - UPPER REARFOIL, PROTECTIVE - UPPER REAR
