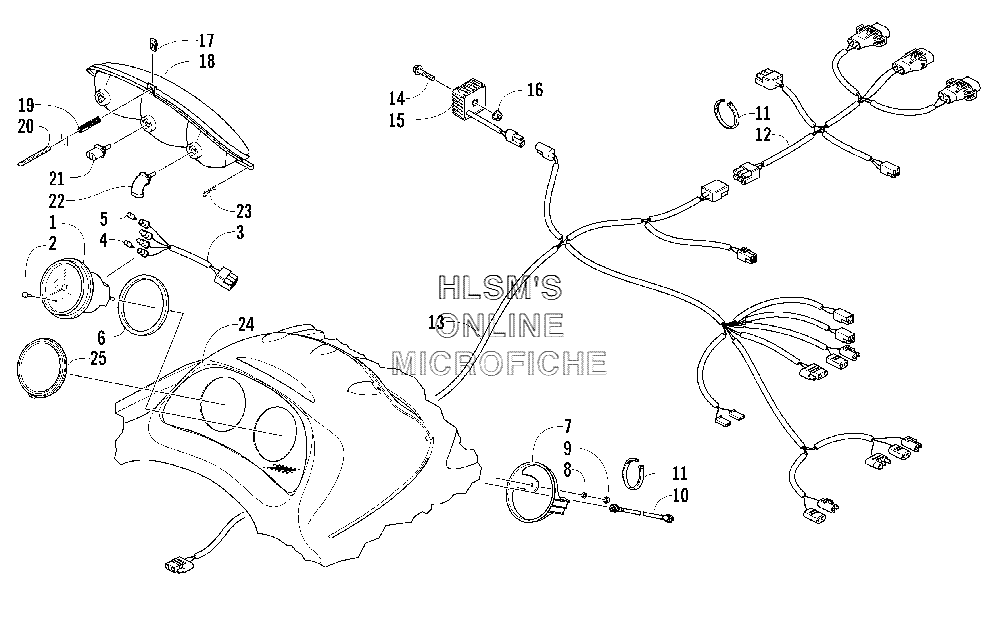

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Z 570 (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 5)SPEEDOMETER (INC. 2, 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB, SPEEDOMETER (INC. 4, 5)HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
-
40620-149 BULB, INDICATORBULB, INDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
70620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
88050-212 WASHERWASHER
-
90623-038 NUT W/WASHERNUT W/WASHER
-
100620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
110123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
120686-515 HARNESS, HOODHARNESS, HOOD
-
131686-083 HARNESS, MAINHARNESS, MAIN
-
148020-045 SCREW, CAPSCREW, CAP
-
150630-181 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
168048-366 NUT, LOCKNUT, LOCK
-
170623-757 NUT, SPEEDNUT, SPEED
-
180609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
190623-466 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
200623-467 SCREW, THUMBSCREW, THUMB
-
210609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
220609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
230623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
246611-578 DECAL, CONSOLE, "Z"DECAL, CONSOLE, "Z"
-
252606-069 PLUG, GAUGE HOLEPLUG, GAUGE HOLE
