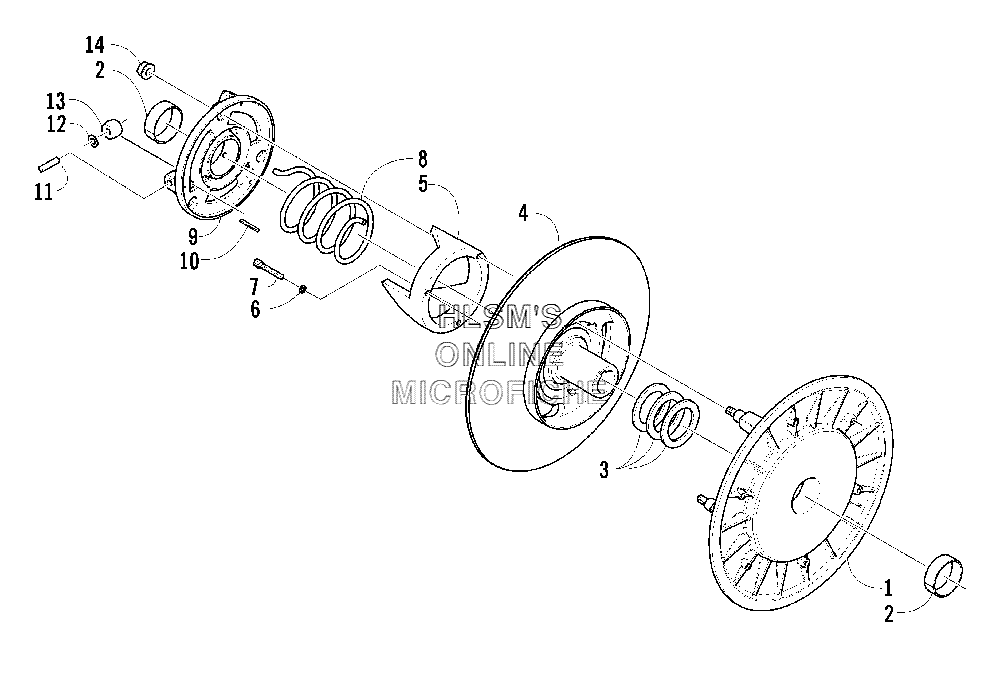

DRIVEN CLUTCH для Arctic Cat Z 370 LX (GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    0726-211 DRIVEN CLUTCH ASSEMBLY
    DRIVEN CLUTCH ASSEMBLY
  • 1
    0748-023 SHEAVE, MOVABLE (INC. ONE NO. 2)
    SHEAVE, MOVABLE (INC. ONE NO. 2)
  • 2
    0648-009 BEARING
    BEARING
  • 3
    0148-198 WASHER, THRUST: 0.030 IN.
    WASHER, THRUST: 0.030 IN.
  • 3
    0148-199 WASHER, THRUST: 0.060 IN.
    WASHER, THRUST: 0.060 IN.
  • 4
    0748-021 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 5
    0148-222 BRACKET, TORQUE 51
    BRACKET, TORQUE 51
  • 5
    0648-014 BRACKET, TORQUE 49° OVER 5,000 FT ALT.
    BRACKET, TORQUE 49° OVER 5,000 FT ALT.
  • 6
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 7
    8005-404 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 8
    0648-012 SPRING, DRIVEN CLUTCH (BLUE)
    SPRING, DRIVEN CLUTCH (BLUE)
  • 8
    0148-227 SPRING, DRIVEN CLUTCH (YELLOW)
    SPRING, DRIVEN CLUTCH (YELLOW)
  • 9
    0748-018 PLATE, ROLLER ASSEMBLY
    PLATE, ROLLER ASSEMBLY
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
  • 12
    0648-082 WASHER, THRUST CAM ROLLER
    WASHER, THRUST CAM ROLLER
  • 13
    0648-079 ROLLER, CAM
    ROLLER, CAM
  • 14
    8048-426 NUT, LOCK
    NUT, LOCK
