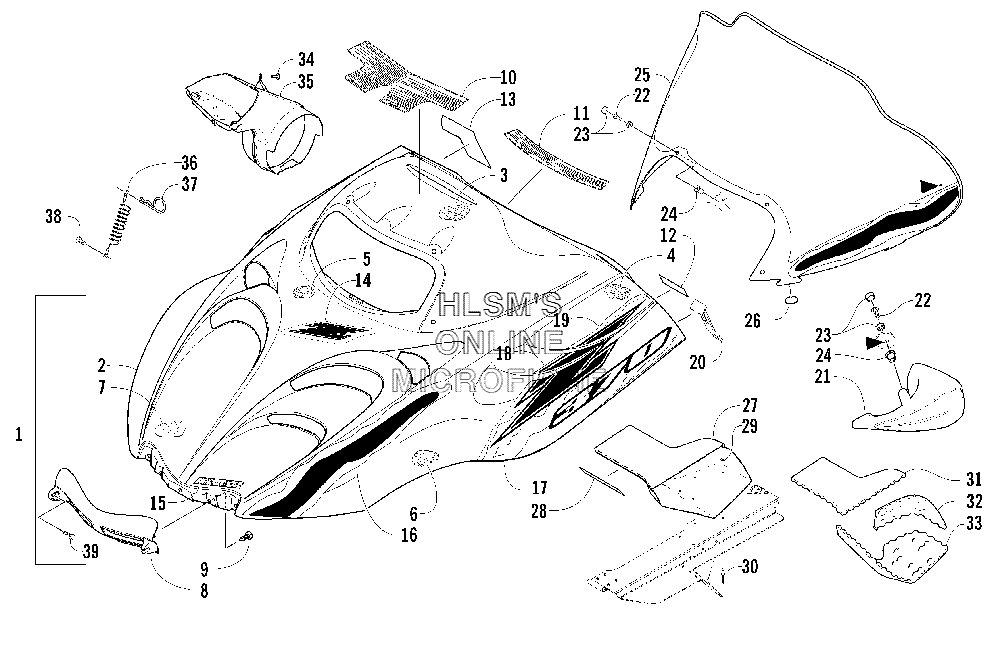

HOOD AND WINSHIELD ASSEMBLY для Arctic Cat Z 370 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11718-880 HOOD W/DECALS (INC. 2 12 AND 14 19)HOOD W/DECALS (INC. 2 12 AND 14 19)
-
21718-604 HOOD W/O DECALS (INC. 3 12)HOOD W/O DECALS (INC. 3 12)
-
30617-478 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-479 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-476 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-505 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-475 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60617-327 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
71606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
71606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
81606-720 HINGE, HOODHINGE, HOOD
-
90623-797 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
103611-485 DECAL, WARNING GENERAL AND BRAKEDECAL, WARNING GENERAL AND BRAKE
-
113611-970 DECAL, CAUTION ENGINE/BATTERY/FUELDECAL, CAUTION ENGINE/BATTERY/FUEL
-
123611-509 DECAL, WARNING SEATING CAPACITYDECAL, WARNING SEATING CAPACITY
-
146611-572 DECAL, HOOD CRESTDECAL, HOOD CREST
-
156611-576 DECAL, ''ARCTIC CAT'' HOODDECAL, ''ARCTIC CAT'' HOOD
-
166611-554 DECAL, HOOD FORWARD (RIGHT)DECAL, HOOD FORWARD (RIGHT)
-
166611-555 DECAL, HOOD FORWARD (LEFT)DECAL, HOOD FORWARD (LEFT)
-
176611-560 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
176611-561 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
186611-558 DECAL, HOOD VENT (CENTER/RIGHT) (GREEN)DECAL, HOOD VENT (CENTER/RIGHT) (GREEN)
-
186611-559 DECAL, HOOD VENT (CENTER/LEFT) (GREEN)DECAL, HOOD VENT (CENTER/LEFT) (GREEN)
-
196611-556 DECAL, HOOD VENT (UPPER/RIGHT) (GREEN)DECAL, HOOD VENT (UPPER/RIGHT) (GREEN)
-
196611-557 DECAL, HOOD VENT (UPPER/LEFT) (GREEN)DECAL, HOOD VENT (UPPER/LEFT) (GREEN)
-
201606-067 STRAP, HOLD DOWNSTRAP, HOLD DOWN
-
220623-902 SCREW, MACHINESCREW, MACHINE
-
230124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
254606-033 WINDSHIELDWINDSHIELD
-
260616-032 O RINGO RING
-
271606-872 DUCT, AIR OUTDUCT, AIR OUT
-
280706-548 TAPE, FOILTAPE, FOIL
-
290123-149 WASHERWASHER
-
308060-506 RIVETRIVET
-
310617-453 FOAM, AIR OUT DUCT (TOP)FOAM, AIR OUT DUCT (TOP)
-
320617-454 FOAM, AIR OUT DUCT (SIDE)FOAM, AIR OUT DUCT (SIDE)
-
330617-452 FOAM, AIR OUT DUCT (BOTTOM)FOAM, AIR OUT DUCT (BOTTOM)
-
340623-257 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
351606-829 DUCT, AIR INDUCT, AIR IN
-
362606-247 CABLE, HOODCABLE, HOOD
-
370623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
380623-057 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
391623-016 SCREW, MACHINESCREW, MACHINE
