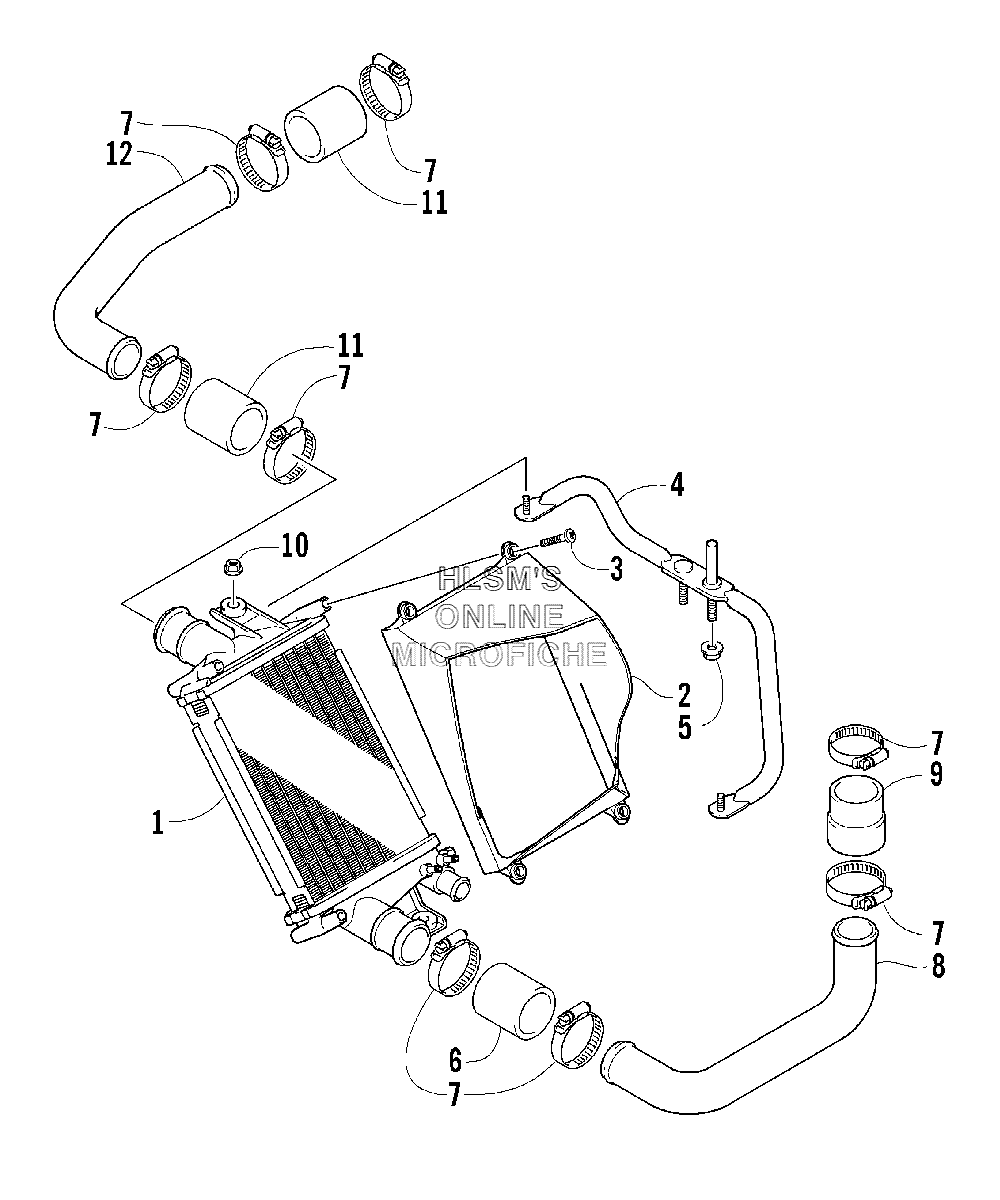

INTERCOOLER ASSEMBLY для Arctic Cat T660 Turbo ST (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3006-818 INTERCOOLER
    INTERCOOLER
  • 2
    1670-549 DUCT, INTERCOOLER
    DUCT, INTERCOOLER
  • 3
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    3006-828 BRACKET, INTERCOOLER
    BRACKET, INTERCOOLER
  • 5
    3004-491 NUT
    NUT
  • 6
    3006-875 HOSE, INTERCOOLER, NO. 2
    HOSE, INTERCOOLER, NO. 2
  • 7
    0423-066 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    3006-826 PIPE, INTERCOOLER, INLET
    PIPE, INTERCOOLER, INLET
  • 9
    3006-876 HOSE, INTERCOOLER, NO. 3
    HOSE, INTERCOOLER, NO. 3
  • 10
    3004-326 NUT
    NUT
  • 11
    3006-825 HOSE, INTERCOOLER, NO. 1
    HOSE, INTERCOOLER, NO. 1
  • 12
    3006-827 PIPE, INTERCOOLER, OUTLET
    PIPE, INTERCOOLER, OUTLET
