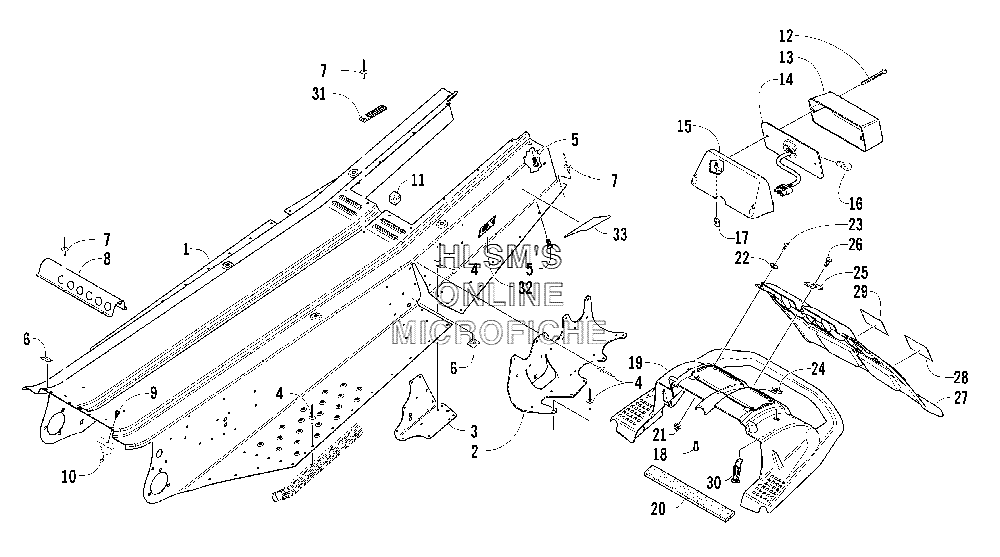

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
-1707-071 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11718-568 TUNNEL ASSEMBLY (INC. 2, 4)TUNNEL ASSEMBLY (INC. 2, 4)
-
22706-554 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
22706-555 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
32706-136 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-137 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
40623-806 RIVETRIVET
-
40123-418 RIVETRIVET
-
48060-506 RIVETRIVET
-
51623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
62606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
78060-504 RIVETRIVET
-
82606-938 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
98017-399 SCREW, MACHINESCREW, MACHINE
-
108040-246 NUT, LOCKNUT, LOCK
-
110617-455 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
120623-204 SCREW, MACHINESCREW, MACHINE
-
130609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
140609-230 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
150609-624 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
160109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
171623-023 NUT, SPEEDNUT, SPEED
-
181623-109 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
193606-454 BUMPER (REAR) (INC. 20)BUMPER (REAR) (INC. 20)
-
200617-496 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
218048-366 NUT, LOCKNUT, LOCK
-
221623-242 WASHERWASHER
-
238017-581 SCREW, MACHINESCREW, MACHINE
-
240623-363 NUT, SPEEDNUT, SPEED
-
251623-399 WASHERWASHER
-
268017-579 SCREW, MACHINESCREW, MACHINE
-
273606-333 SNOWFLAP W/DECALS (INC. 28, 29)SNOWFLAP W/DECALS (INC. 28, 29)
-
285611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
295611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
303606-222 STRAP, HOLD, DOWN, STORAGE BOXSTRAP, HOLD, DOWN, STORAGE BOX
-
313002-964 CLAMP, WIRECLAMP, WIRE
-
326611-718 DECAL, "LX", TUNNELDECAL, "LX", TUNNEL
-
336611-688 DECAL, REFLECTOR (RED/RIGHT)DECAL, REFLECTOR (RED/RIGHT)
-
336611-689 DECAL, REFLECTOR (RED/LEFT)DECAL, REFLECTOR (RED/LEFT)
