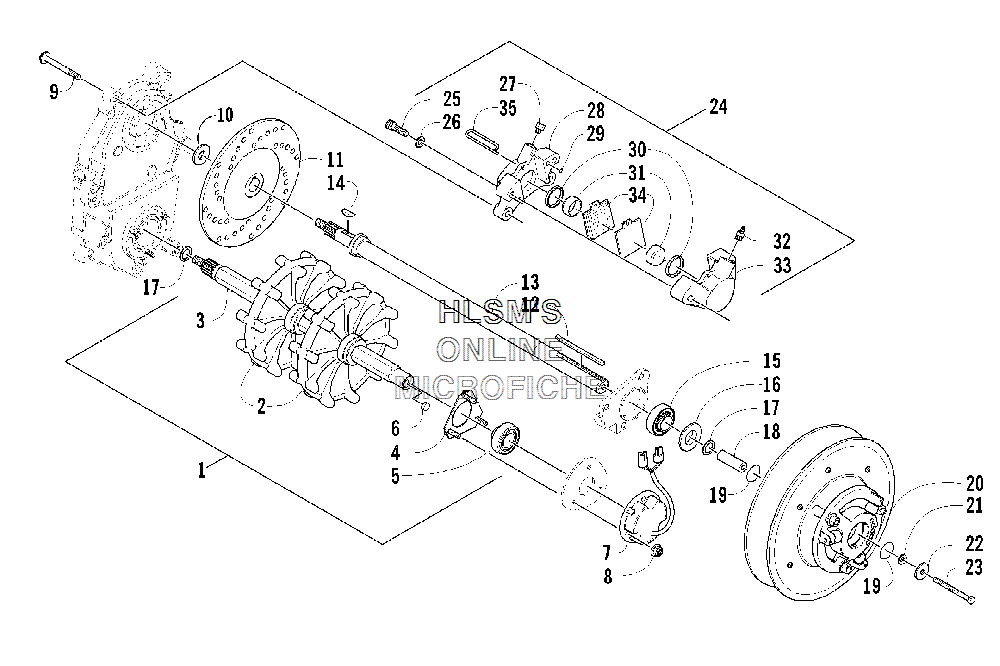

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Sabercat 700 EFI EXT (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-114 TRACK DRIVE ASSY. (INC. 2-6)
    TRACK DRIVE ASSY. (INC. 2-6)
  • 2
    1602-510 SPROCKET, DRIVE
    SPROCKET, DRIVE
  • 3
    1602-551 DRIVESHAFT
    DRIVESHAFT
  • 4
    0702-412 PLATE, FLANGE
    PLATE, FLANGE
  • 5
    1602-374 BEARING, 1 IN. W/O LOCK COLLAR
    BEARING, 1 IN. W/O LOCK COLLAR
  • 6
    0630-167 MAGNET
    MAGNET
  • 7
    0630-166 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 8
    8047-426 NUT, LOCK
    NUT, LOCK
  • 9
    8020-315 SCREW, CAP
    SCREW, CAP
  • 10
    0623-912 WASHER, FLAT
    WASHER, FLAT
  • 11
    1602-205 DISC, BRAKE
    DISC, BRAKE
  • 12
    0101-076 KEY (3/16 X 1/4 X 3)
    KEY (3/16 X 1/4 X 3)
  • 13
    0702-506 SHAFT, DRIVEN (INC. 14-16)
    SHAFT, DRIVEN (INC. 14-16)
  • 14
    0602-598 KEY, WOODRUFF - HARDENED
    KEY, WOODRUFF - HARDENED
  • 15
    1602-233 BEARING, 1 IN. W/O LOCK COLLAR
    BEARING, 1 IN. W/O LOCK COLLAR
  • 16
    1602-367 SPACER
    SPACER
  • 17
    0623-118 WASHER, FLAT
    WASHER, FLAT
  • 17
    0623-119 WASHER, FLAT
    WASHER, FLAT
  • 18
    0648-042 SHAFT, STUB
    SHAFT, STUB
  • 19
    0616-032 O-RING
    O-RING
  • 20
    0726-182 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 21
    0123-053 WASHER, FLAT
    WASHER, FLAT
  • 22
    0123-019 WASHER, FLAT
    WASHER, FLAT
  • 23
    8002-139 SCREW, CAP
    SCREW, CAP
  • 24
    0602-829 CALIPER, BRAKE ASSY. (INC. 25-35)
    CALIPER, BRAKE ASSY. (INC. 25-35)
  • 25
    8005-677 SCREW, CAP
    SCREW, CAP
  • 26
    8050-272 WASHER, FLAT
    WASHER, FLAT
  • 27
    0602-590 FITTING, ADAPTER
    FITTING, ADAPTER
  • 29
    0602-729 O-RING, HOUSING
    O-RING, HOUSING
  • 30
    0602-583 O-RING
    O-RING
  • 31
    0602-708 PISTON
    PISTON
  • 32
    0602-707 SCREW, BLEED - ASSY.
    SCREW, BLEED - ASSY.
  • 34
    0702-229 PAD, BRAKE - SET (INC. 35)
    PAD, BRAKE - SET (INC. 35)
  • 35
    0602-706 PIN, RETAINING - BRAKE PAD
    PIN, RETAINING - BRAKE PAD
